SKU:86101678

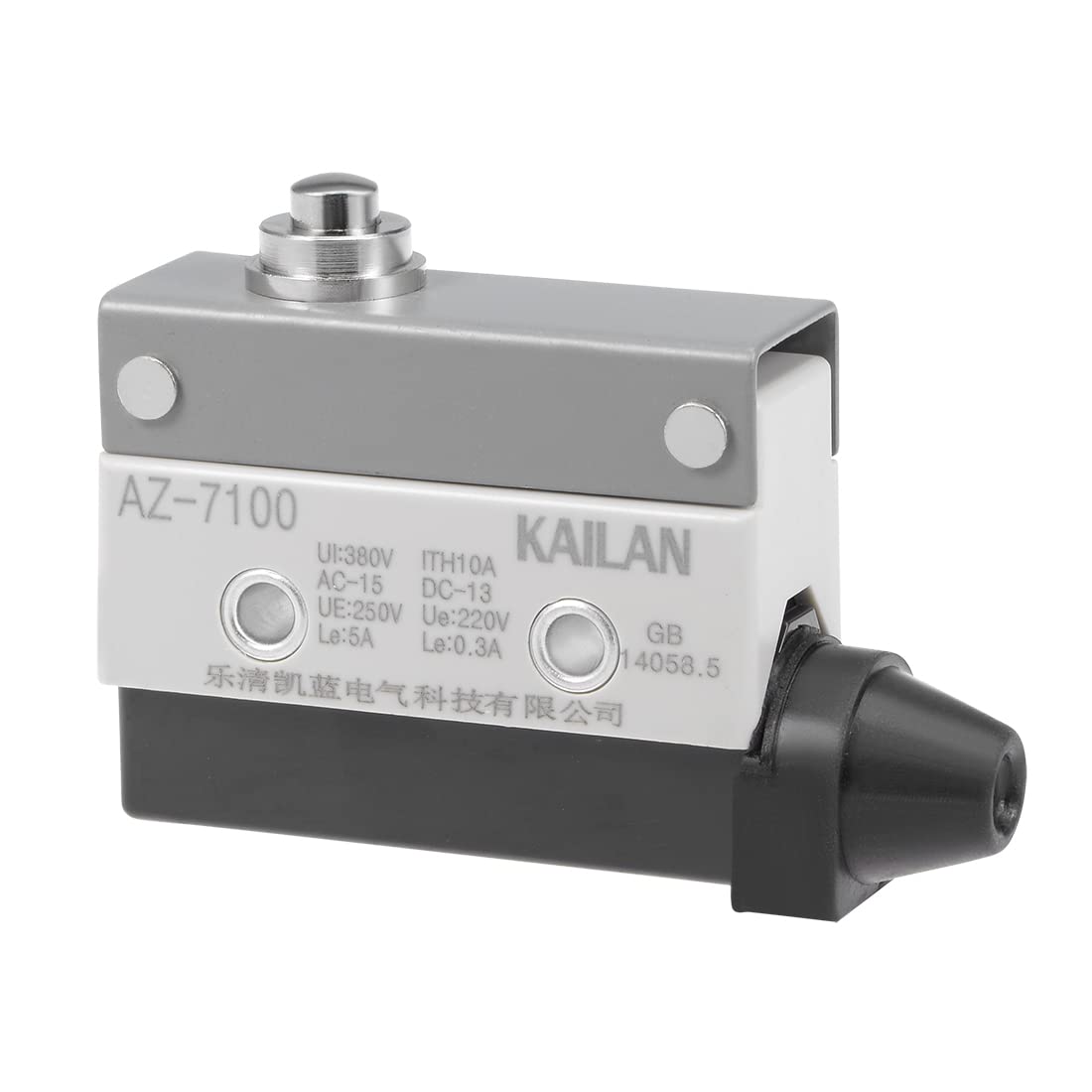

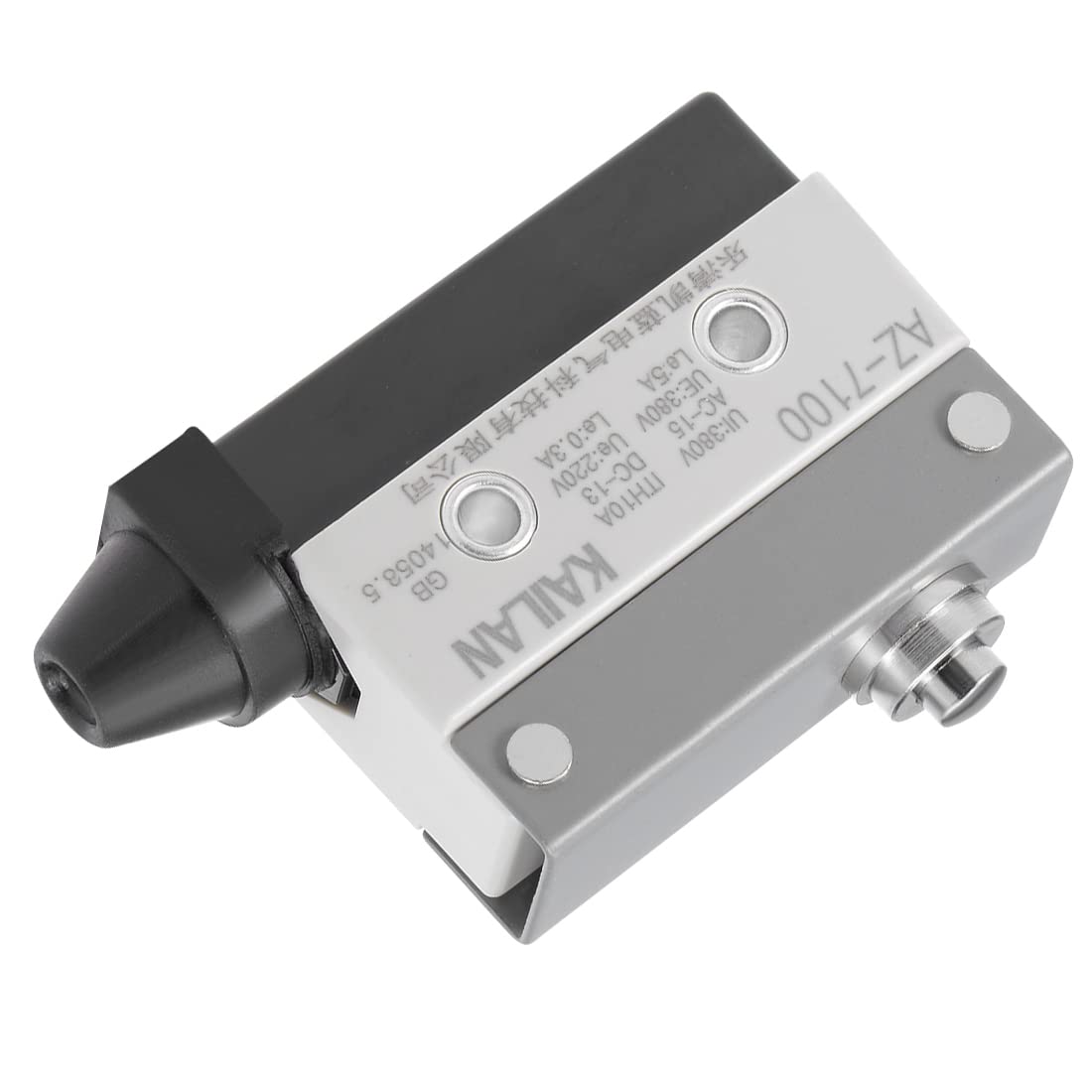

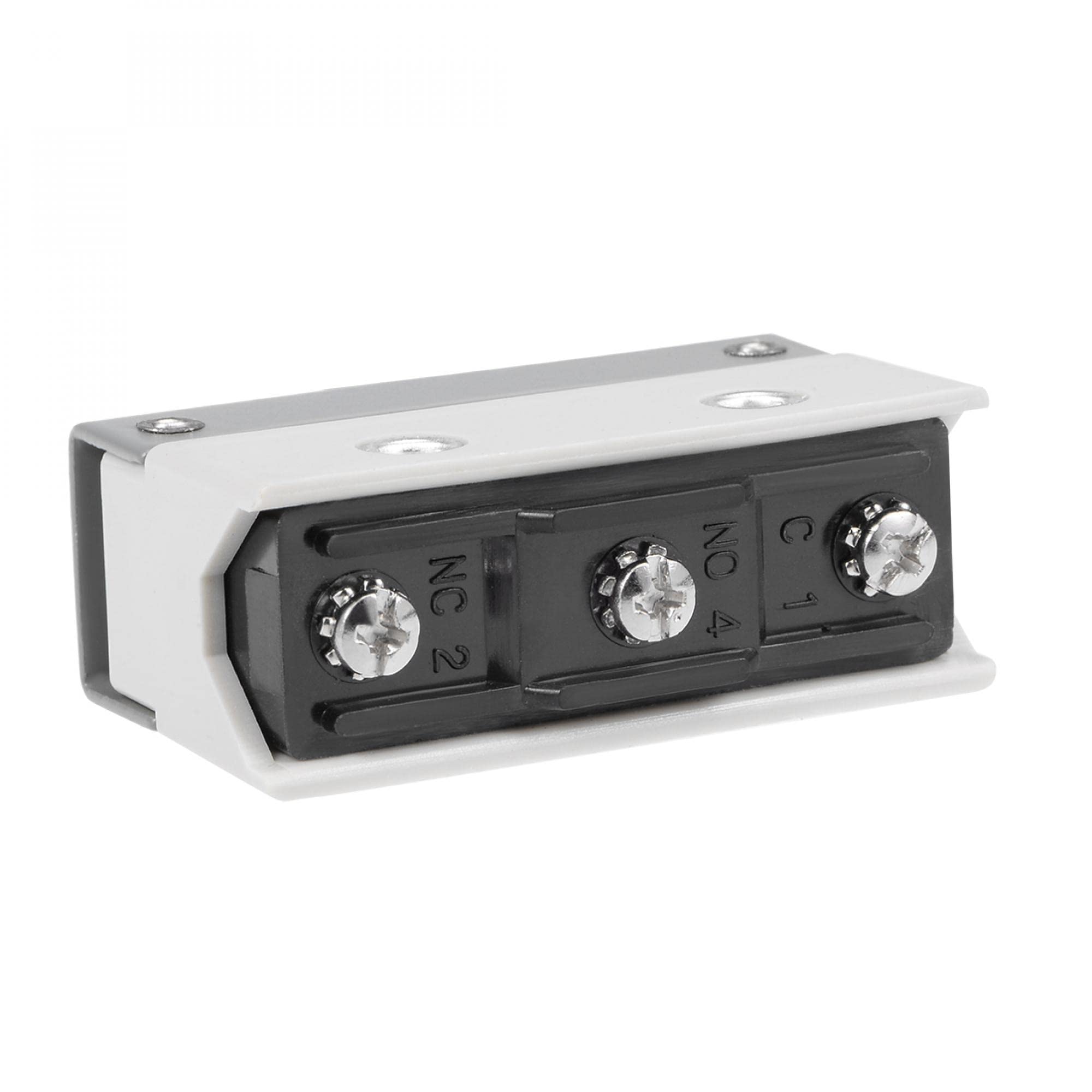

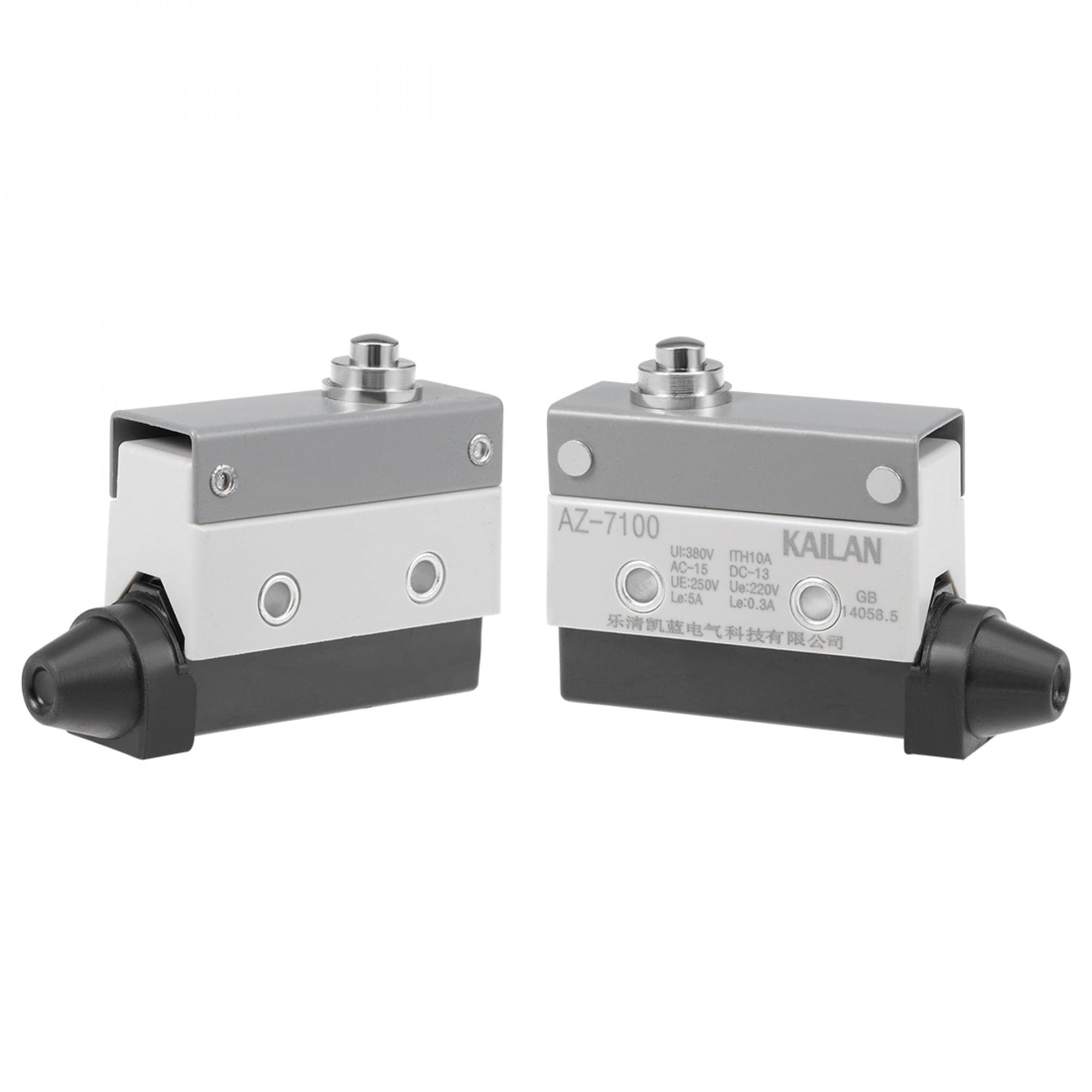

Specification:Product Name: Limit SwitchModel: AZ-7100Actuator Type: Plunger TypeRated Voltage:AC-15: 250V 5ADC-13: 220V 0.3AContact Configuration: 1NC+1NOBody Size: 54 x 42 x 21mm (L*W*T)Mounting Hole Size: 4.2mm (D)Mounting Hole Distance: 25.4mm The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger. Operating Characteristics:OF max.: 600gRF min.: 100gPT max.: 2.0mmOT min.: 0.8mmMD max.: 0.8mmOP: 30.5+/-0.8mm Description:Insentive ABS plastic shell, sealed construction.Panel mount, side fixed with better water-proof and oil-proof performance.Smooth operation with highter OT.Silver contacts. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Model AZ-7100; Plunger Type
built-in basic switch with good electrical conductivity
Able to withstand some washdowns, shock and vibration
Easy-to-wire, smooth operation and reliable
Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
