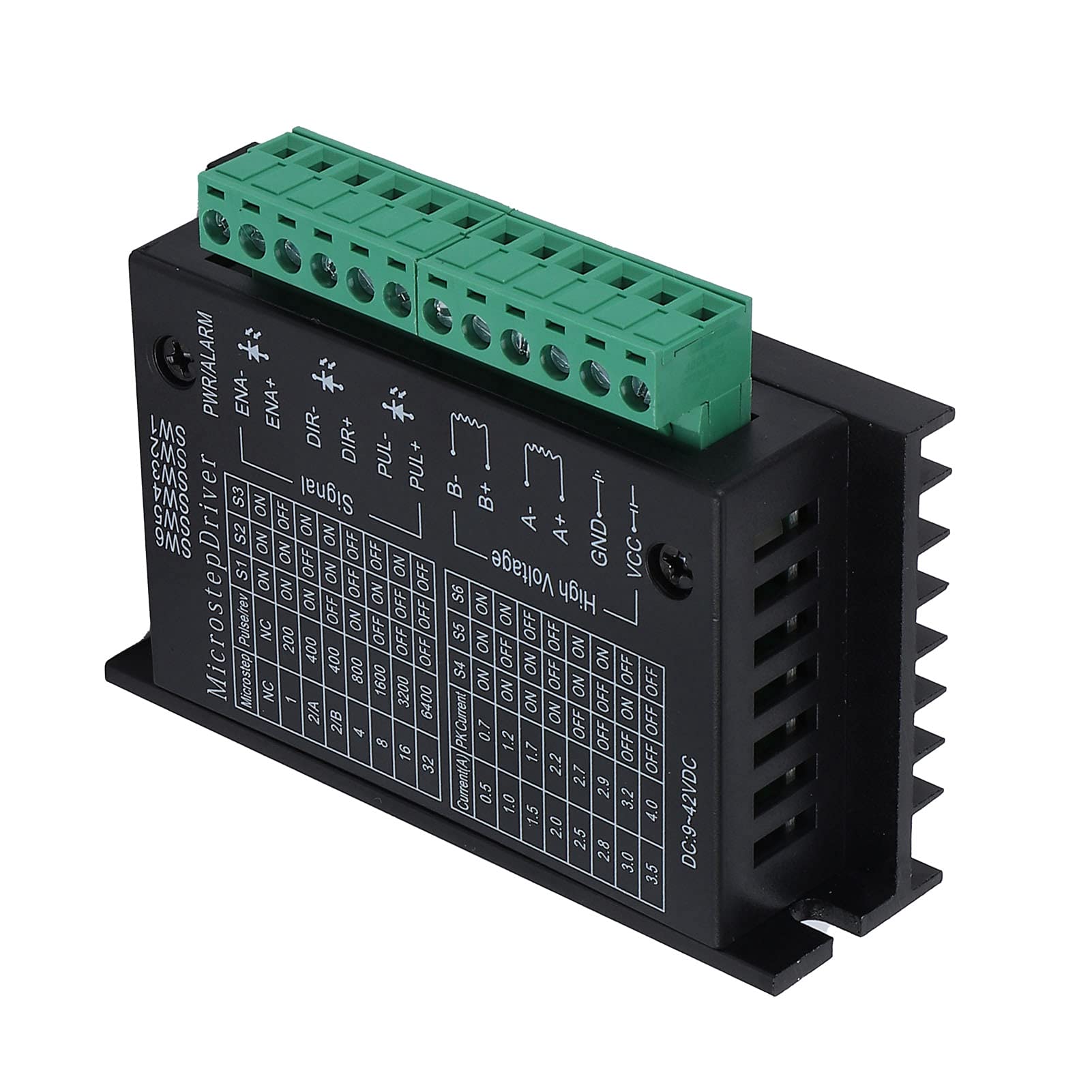

TB6600 Micro Stepper Motor Driver - High Precision CNC Controller for 3D Printers, Engraving Machines, Cutting & Marking Equipment | Perfect for DIY CNC Projects & Industrial Automation

Product Description

Feature:1. Adopt imported special chips are used to realize a precise control stepping system2. The current is automatically halved at rest, with functions such as overheating, overcurrent, undervoltage lockout, and input voltage reverse connection protection3. With large‑area heat sink, it can dissipate heat in time without damaging the encoder4. High quality ABS material can make sure the durability and stability of the product5. Suitable for engraving machine, marking machine, cutting machine, phototypesetting, plotter, CNC machine tool, holding device, etc.How to Use:1. The number of subdivisions is selected and set by the dial switch on the drive board 2. The user can set according to the data of the subdivision selection table on the drive (preferably set when the power is off) 3. The calculation method of step angle is as follows: step angle=motor inherent step angle/number of subdivisions.Specification:Item Type: Micro Step DriverMaterial: ABSHumidity: 40-90%RHVibration: 10-55Hz/0.15mmStorage Temperature: -20～65℃Input Voltage: DC 9-42VCooling Method: Natural cooling or forced air coolingSignal Input: Single-ended, pulse/directionApplicable Motor: 4-wire, 6-wire and 8-wire 2-phase stepping motor with current below 4.0A and outer diameter of 39,42,57mmApplicable Equipment: Suitable for All Kinds of Small and Medium-sized Automation Equipment or instruments, such as: Engraving machine, marking machine, cutting machine, phototypesetting, plotter, CNC machine tool, holding device, etc. In equipment where use
