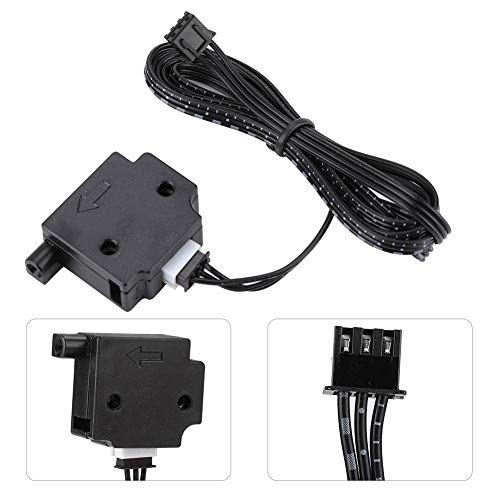

3D Printer Filament Detection Sensor Module - Break & Run-Out Pause Monitor for Ender 3, CR-10 - Perfect for Continuous Printing & Preventing Failed Prints

Product Description

Features: Use on lerdge board: the green light for the module is always on when material is available. When the material is used up, the green light goes out. The main board executes the pause command operation and waits for the personnel to replace the good material and then continues to print. Lerdge main board wiring: M sensor port on the main board. For other boards: material detection module uses level detection method. When there is material, the level signal of the detection port should be high. When there is no material, the level signal of the material port becomes low, and the system detects one. If the high to low conversion is determined, the material is considered exhausted and the pause command is executed. After humans change the material, the printer continues to print. Suitable for printer run-out, pause detection. Specification:Condition: 100% brand newMaterial: ABSColor: as picture shownPackage list:1 x Filament Detecting Module1 x Connecting Line Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
