SKU:53589441
Specifications Brand: MssoommModel: SBR20Shaft Diameter: 20mmThis item includes:2pcs SBR20-15.75 inch / 400mm Linear Slide Guide Fully-supported Rails4pcs SBR20UU Bearing BlocksFeature & Application:1. Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail.2. Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing.3. The cnc linear rails apply for various kinds of automated machines and equipment, can help build economical linear guiding systems. Applicable for large-scale transmission equipment including industrial robots, cleaning equipment and supporting devices, etc.Please Note:We provide customization, including the rail length, Retaining ring which used to stop the blocks from sliding off the end of the rail, and the Handle which used to adjust the tightness of the slider. You can see the real object of the retaining ring and handle in the 2nd image. You can let us know your need through Amazon Message, pls contact us.

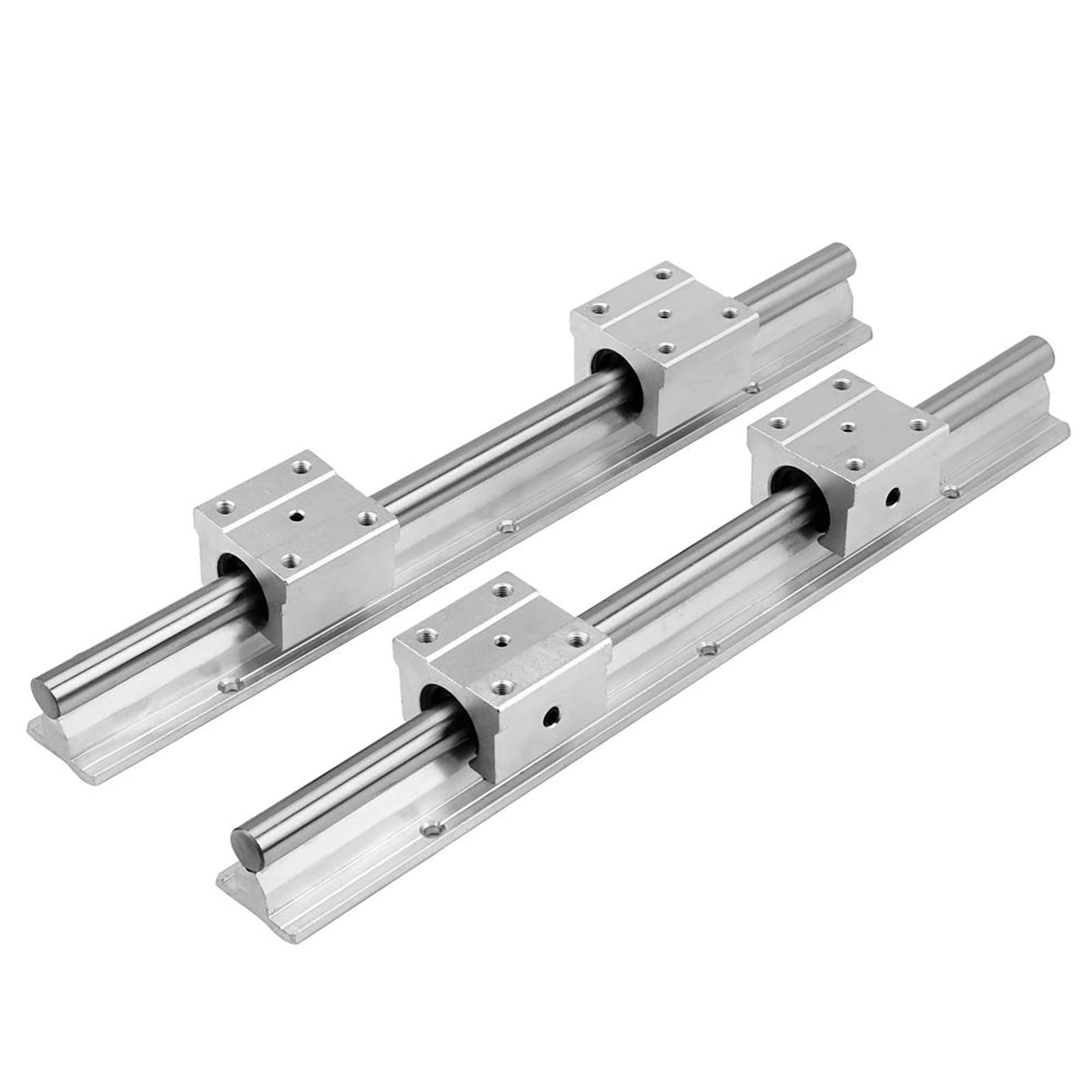

This linear rail kit includes 2pcs 15.75 inch / 400mm length linear rail shafts, shaft diameter 0.79 inch/ 20mm and 4 SBR20UU slider blocks

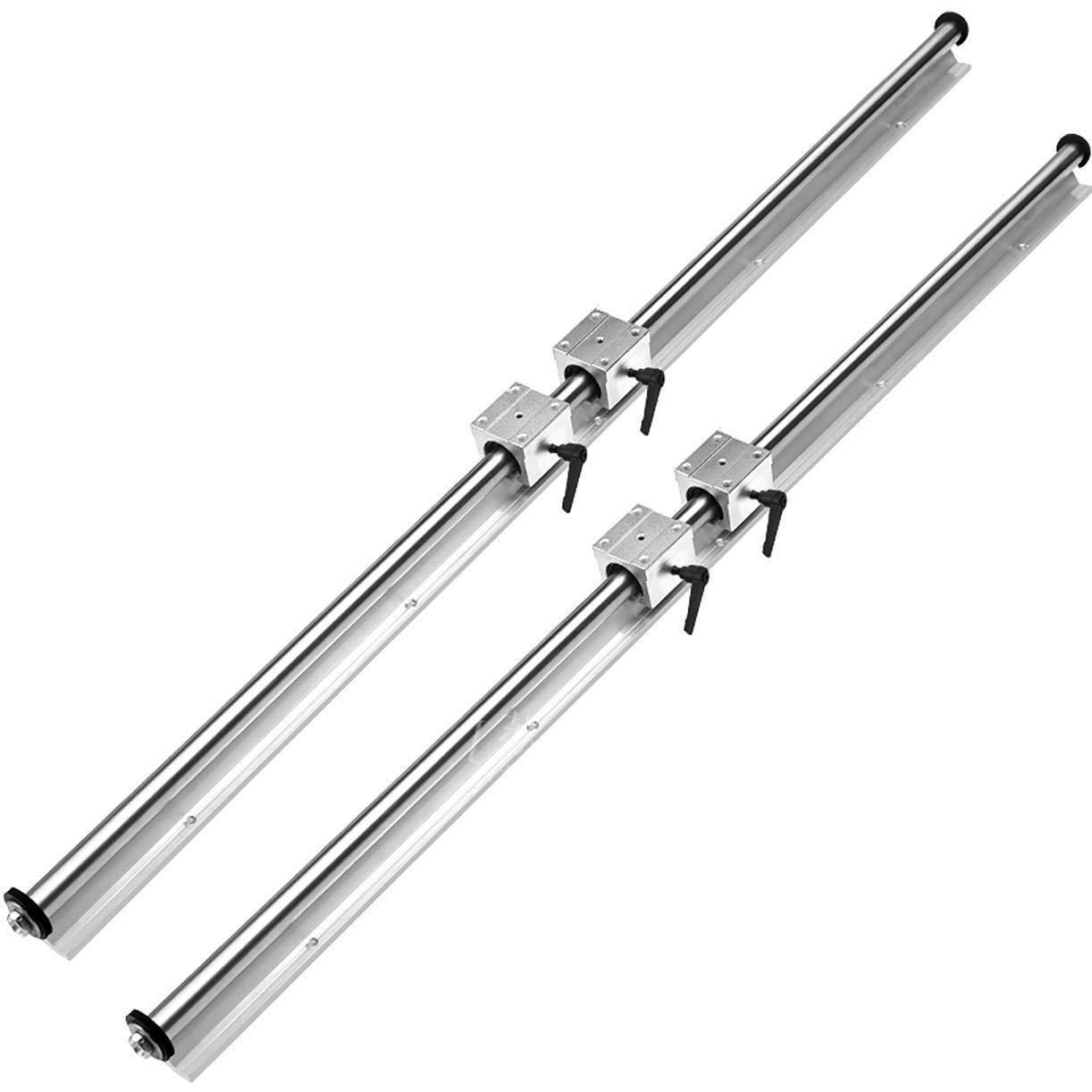

We provide customization, including the rail length, End stops which avoid the blocks sliding off the end of the rail, and the Handle which used to adjust the tightness of the slider block, you can see the real object of the retaining ring and handle in the 2nd image. You can let us know your need through Amazon Message

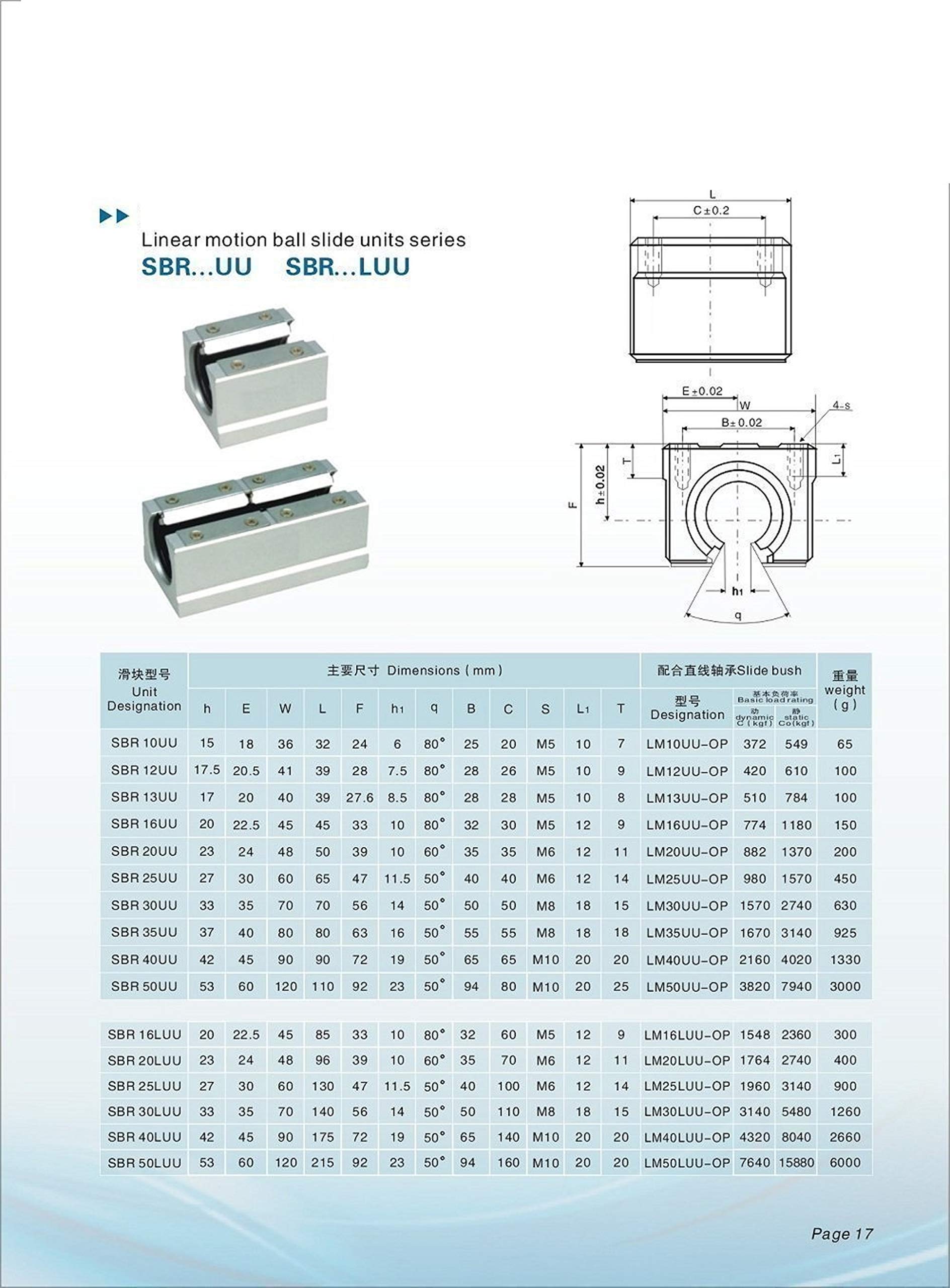

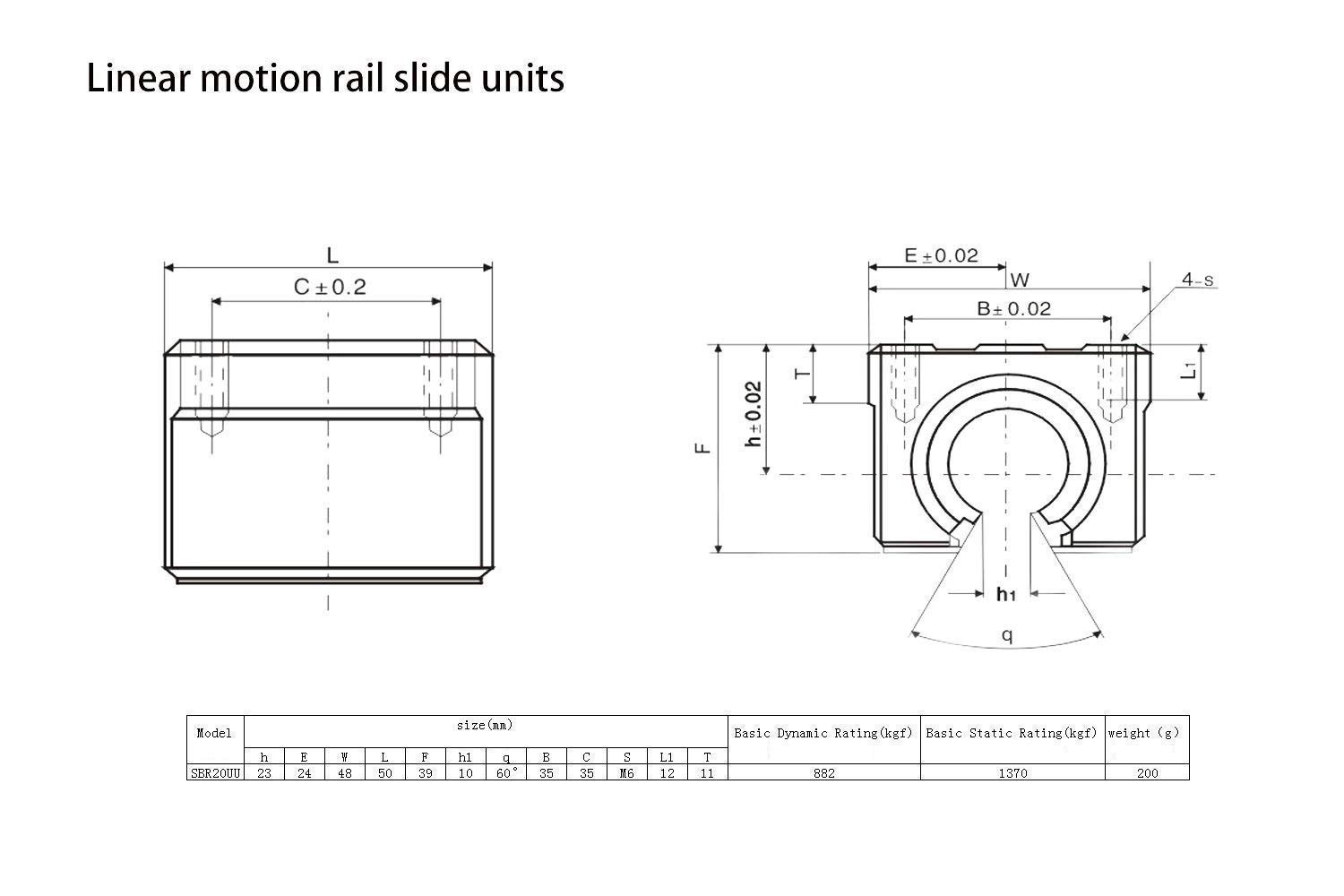

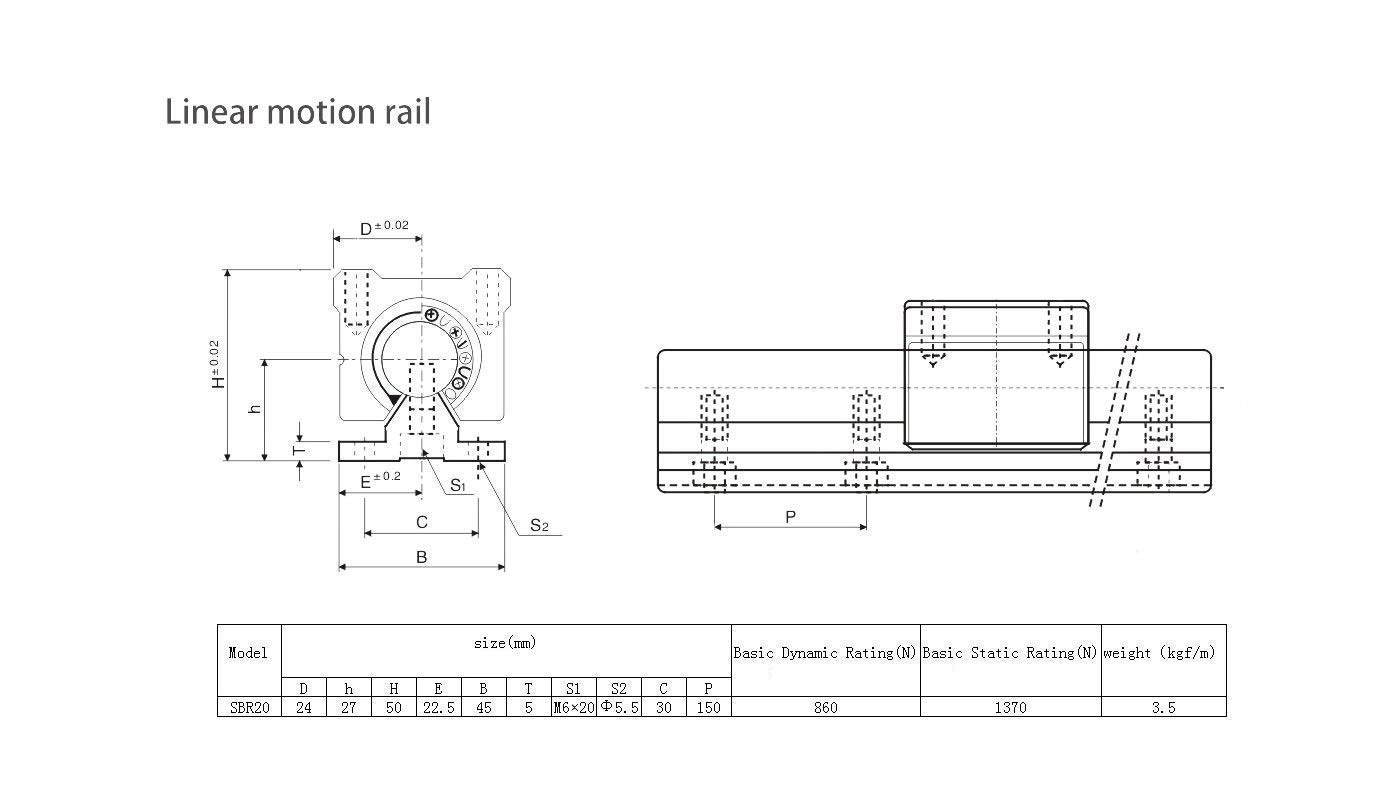

The maximum weight of single SBR20 UU slider block can carry is 198.2lbs, 4Pcs SBR20 UU slider blocks are 793lbs. You can get more technical data from the images

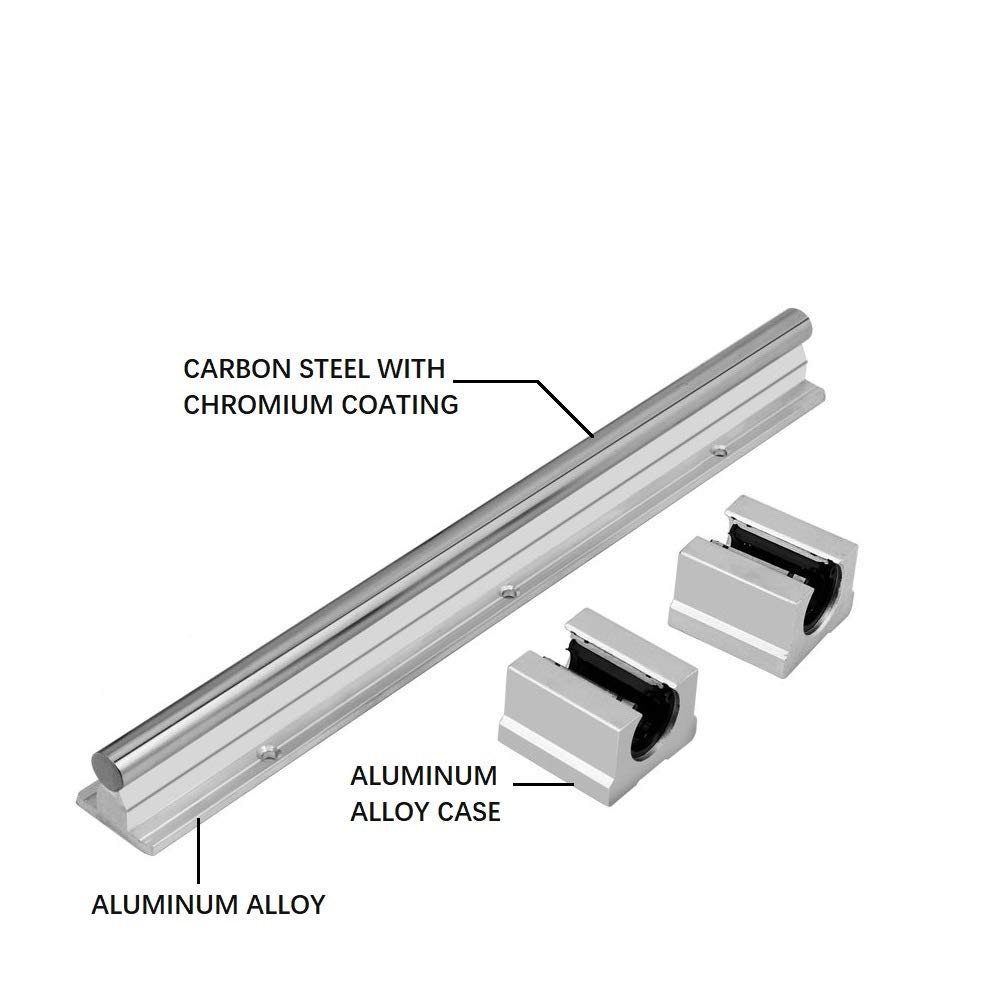

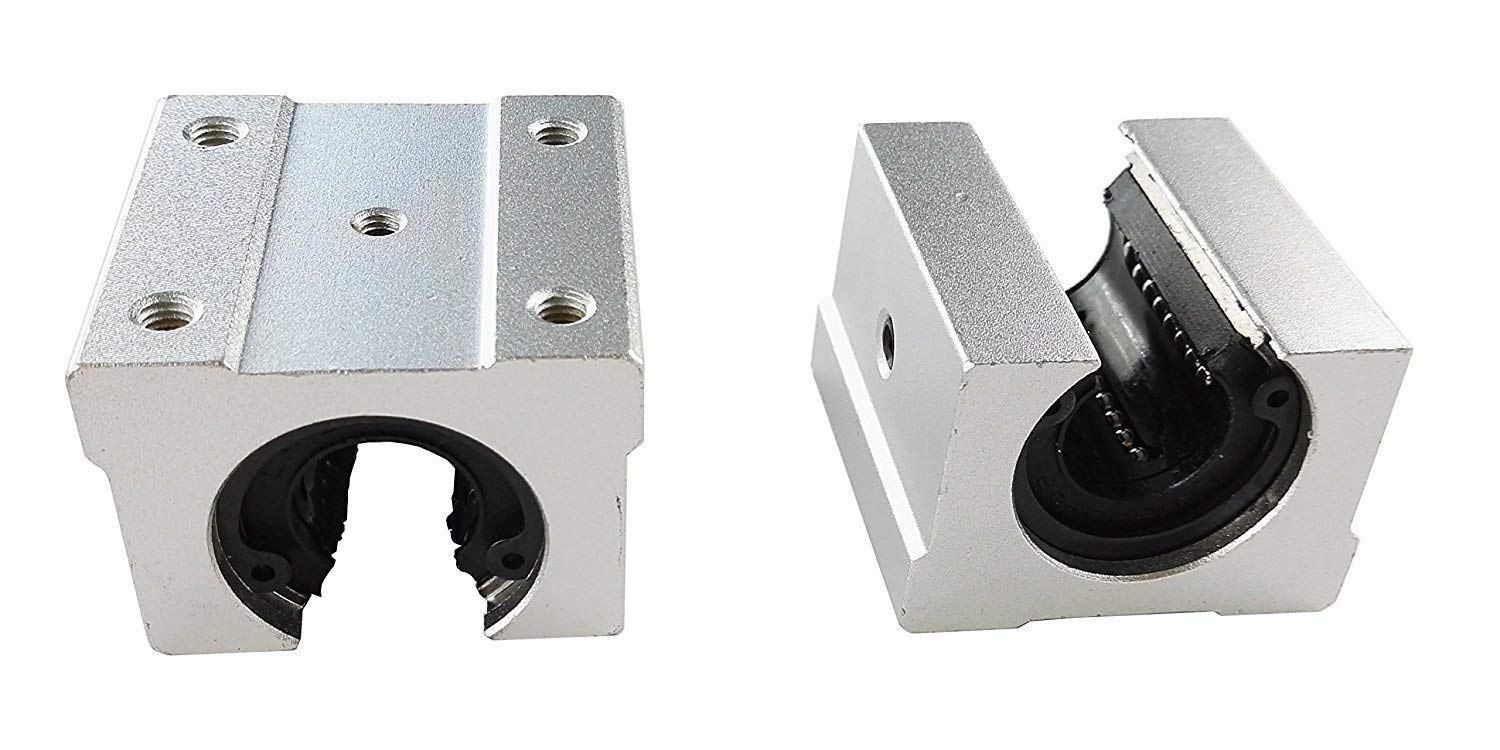

The material of shaft is the Carbon Steel with Chromium coating, quenching and anti-rust treatment; high hardness, more durable. Industrial-grade standard SBR block, with a high precision linear bearing inside. Make the sliding smooth, low friction, silent operation
If this item is not FBA, the lead time is 7-10 Business Days except for for Chinese National Day holiday and Spring Festival
