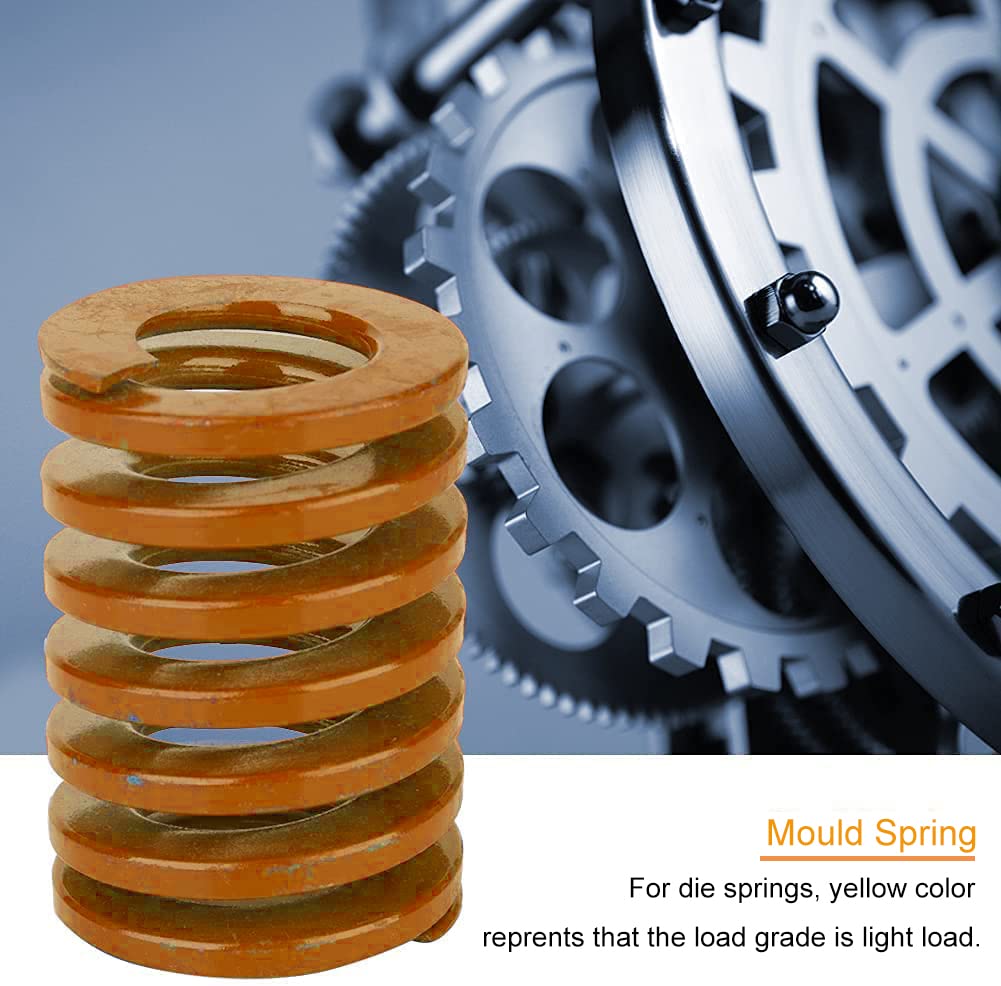

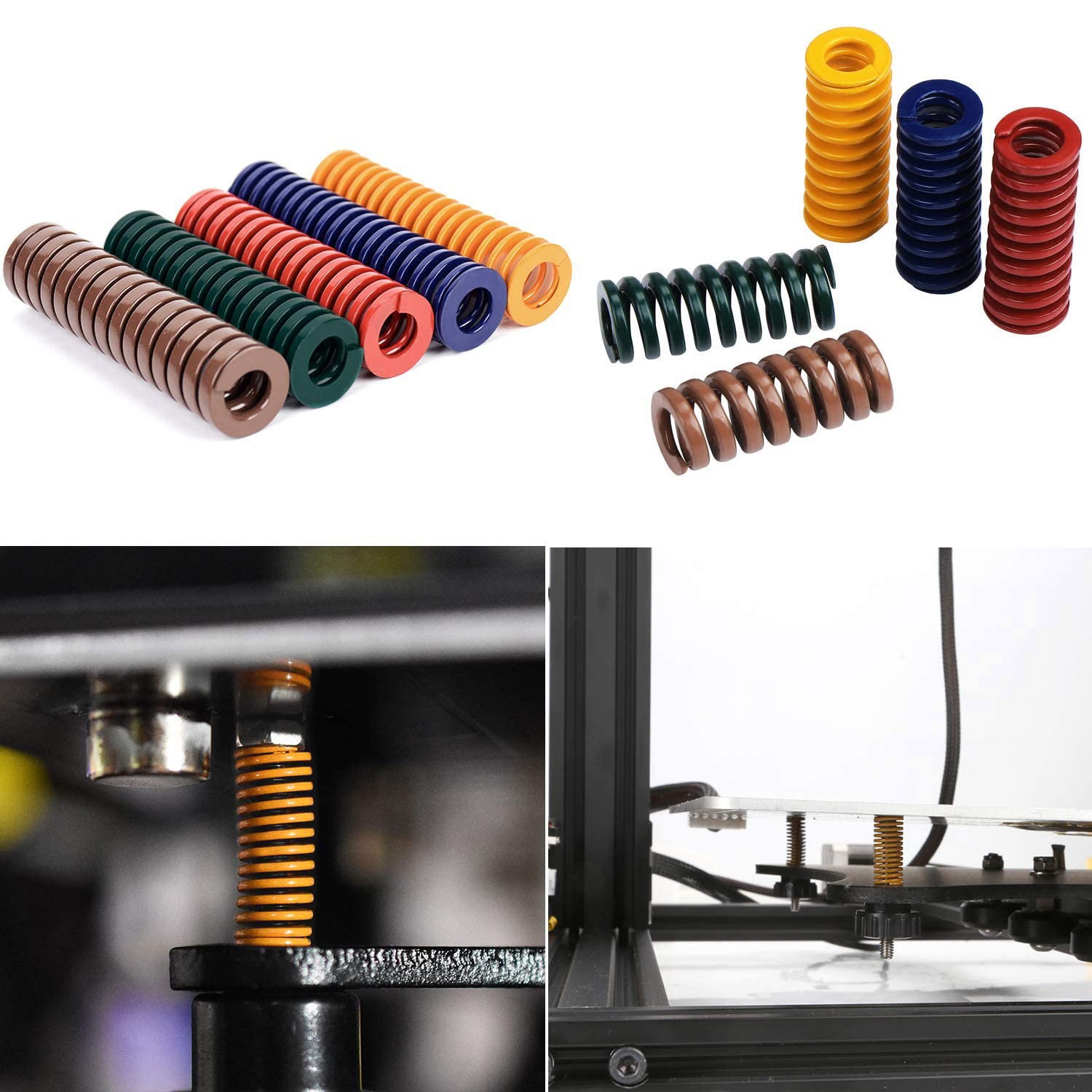

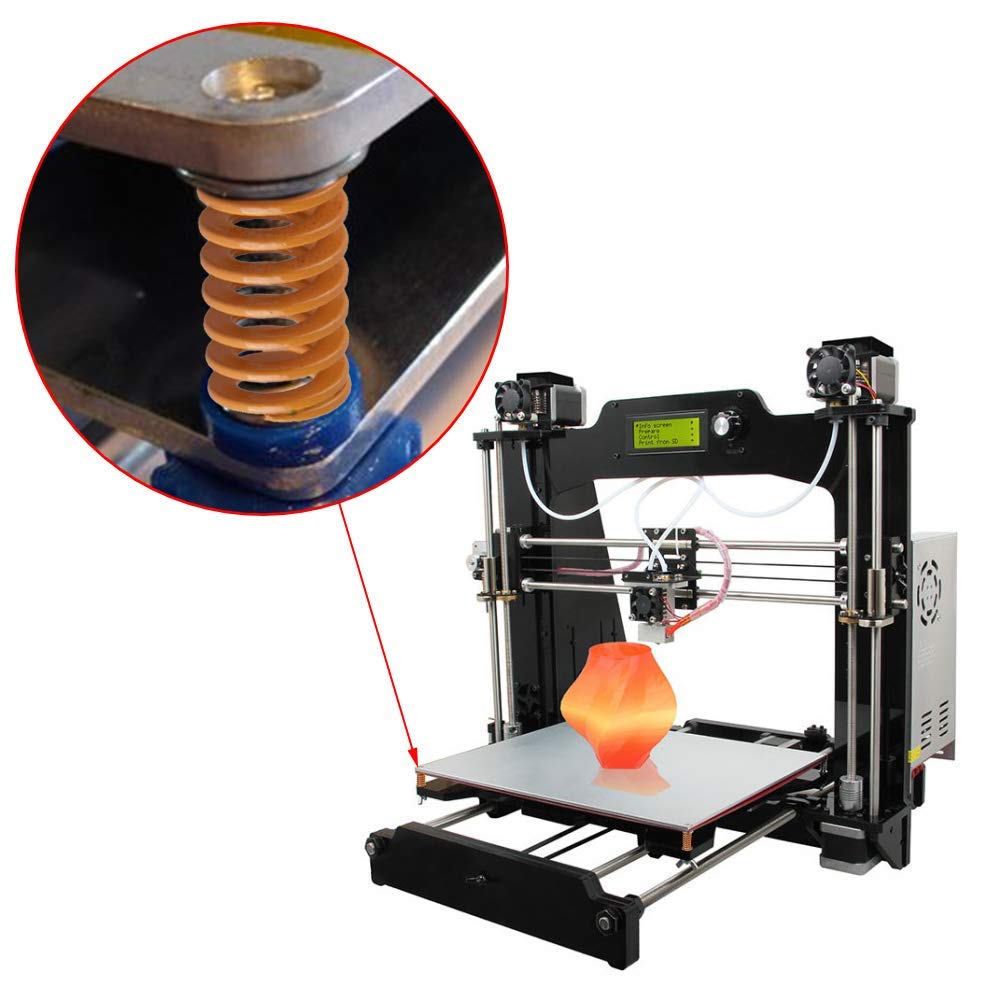

MroMax is a professional supplier of hardware products. We offer die springs in different colors and sizes. The spring has different colors and different bearing capacity. Their durability is better than ordinary springs, which can meet your various needs and provide you with good service. We believe that higher quality and lower cost can help our customers save time and money. Product Specification Yellow Compression Mould Die Spring Tips Generally speaking, according to the load level, it is sorted from light to heavy, followed by yellow, blue, red, green and brown. The Yellow die spring is the one with the lightest load. Professional design Five colors available 1.Die springs are harder than ordinary springs, and their durability is better than ordinary springs, which helps 3D printers print more stably. 2.Widely used in stamping die, metal diecasting die, plastic die and other elasticmotion precision mechanical equipment,automotive field. 3.The diameter of the hole on the Mold, that is, the outer diameter of the spring. The diameter of the rod that is to be inserted into this spring, that is, the inner diameter of the spring. Ordinary Spring & Die Spring Die spring are more stiffer, keeps print Die springs are harder than regular springs, which helps your 3D printer be more stable when printing. 3D printer Mold springs makes it easier to level your bed and to keep it level. Motorized bike Die spring can be used in motorcycle engine clutch to stop slipping. Bike Die spring can be used to improve the function of the front end of the bicycle Extra Heavy Load Heavy Load Medium Load Light Load Lightest Load Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 13 5.0 out of 5 stars 9 3.8 out of 5 stars 19 4.7 out of 5 stars 3 4.6 out of 5 stars 2 Price $7.29$7.29 $12.99$12.99 $8.99$8.99 $7.89$7.89 $11.89$11.89 Outer Diameter 10mm/0.39" 8mm/0.31" 12mm/0.47" 20mm/0.79" 14mm/0.55" Inner Diameter 5mm/0.2" 4mm/0.16" 6mm/0.24" 10mm/0.39" 7mm/0.28" Length 35mm/1.38"(±2mm) 20mm/0.79"(±2mm) 30mm/1.18"(±2mm) 40mm/1.57"(±2mm) 20mm/0.79"(±2mm) Quantity 2 5 10 1 5

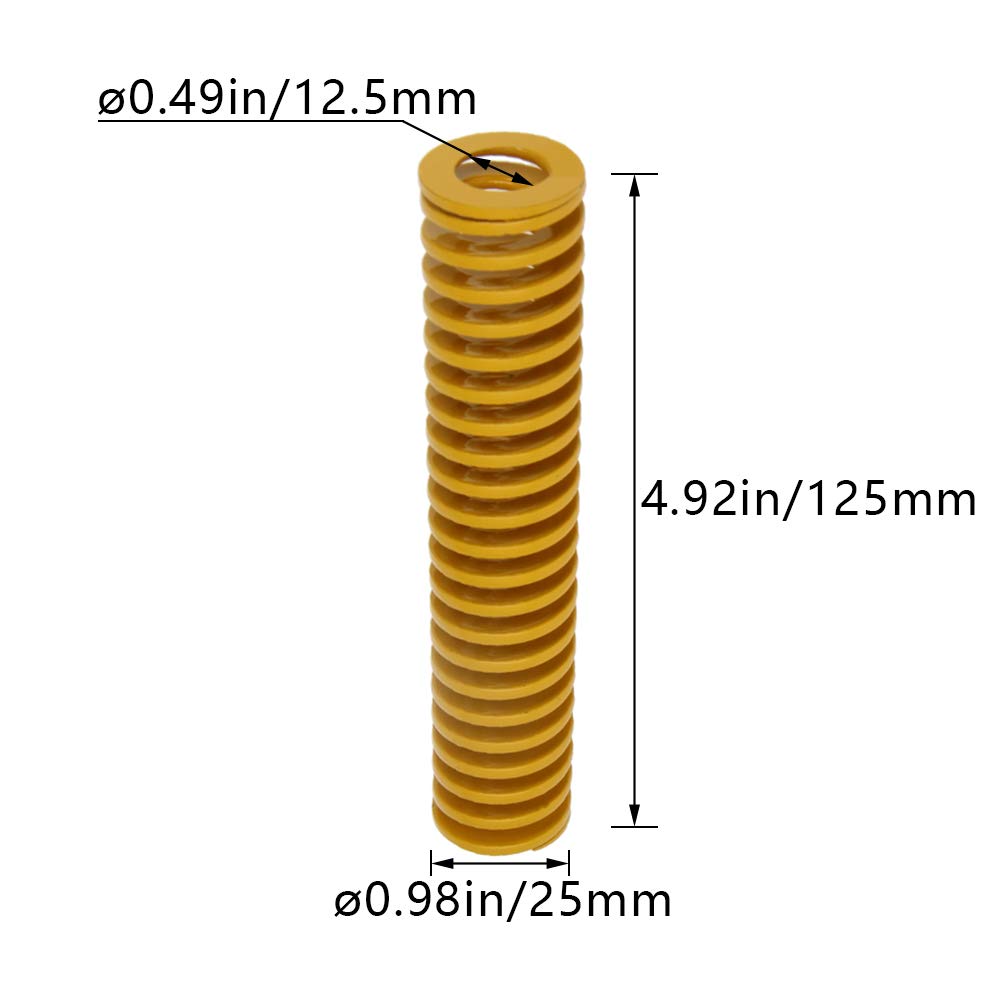

【Size】Hole Diameter(Outer Diameter) 25mm/0.98"; Rod Diameter(Inner Diameter) 12.5mm/0.49";Free Length 125mm/4.92"(±2mm).
【Load Type】Light Load.Rectangular section, closed-end design.
【Material】Made of Spring steel material, the surface is yellow painted, not easy to rust, more durable.
【Compression Ratio】Compression Ratio of 1 million times 0.4; Compression Ratio of 500,000 times 0.45; Compression Ratio of 300,000 times 0.5; Maximum Compression Ratio 0.52.
【Application】Die springs are primarily used in die machinery,For Plastic Injection.
