SKU:18576008
Specifications Brand: MssoommModel: SBR12Shaft Diameter: 12mmThis item includes:4Pcs SBR12-18.11 inch / 460mm Linear Slide Guide Fully-supported Rails8Pcs SBR12UU Bearing BlocksLead Time: 7-10 Business Days except for for Chinese National Day holiday and Spring FestivalFeature & Application:1. Cylindrical guide composed by principal rail and aluminum support, stabilizing the original rail.2. Sliding blocks to be used cooperatively with rails, smooth sliding provided by inside linear bearing.3. The cnc linear rails apply for various kinds of automated machines and equipment, can help build economical linear guiding systems. Applicable for large-scale transmission equipment including industrial robots, cleaning equipment and supporting devices, etc.Please Note:We provide customization, including the rail length, Retaining ring which used to stop the blocks from sliding off the end of the rail, and the Handle which used to adjust the tightness of the slider. You can see the real object of the retaining ring and handle in the 2nd image. You can let us know your need through Amazon Message, pls contact us.

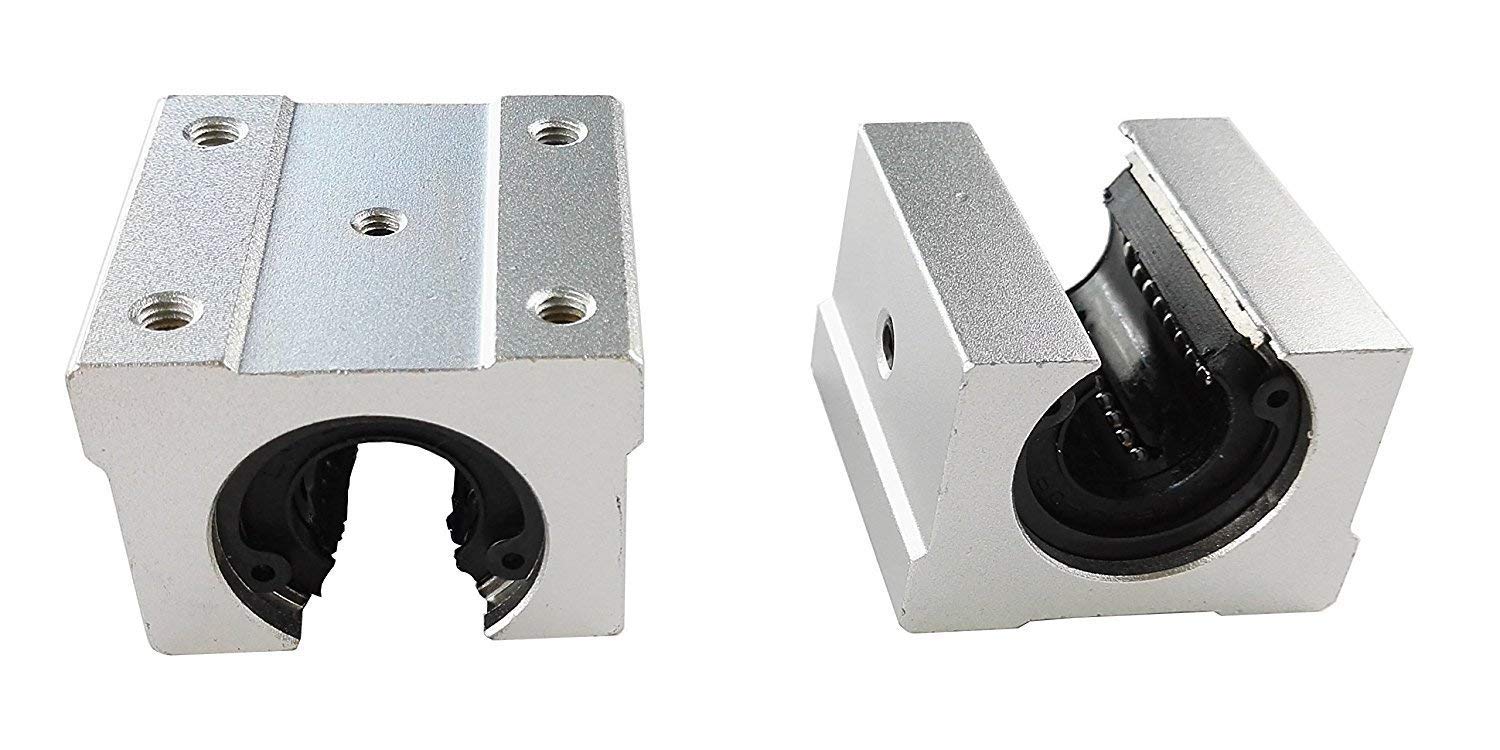

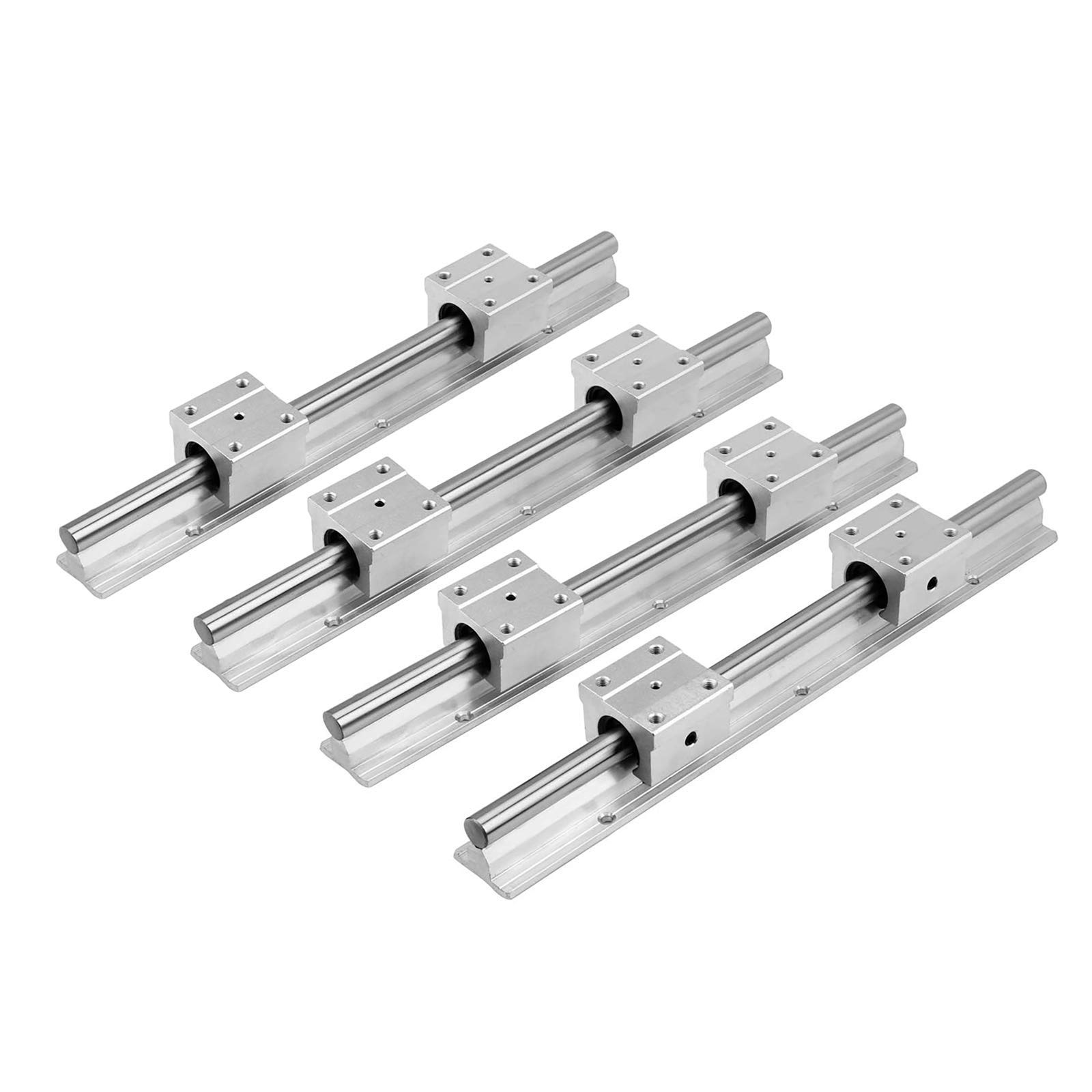

This linear rail kit includes 4Pcs 18.11 inch / 460mm length linear rail shafts, shaft diameter 0.47 inch/ 12mm and 8Pcs SBR12UU slider blocks

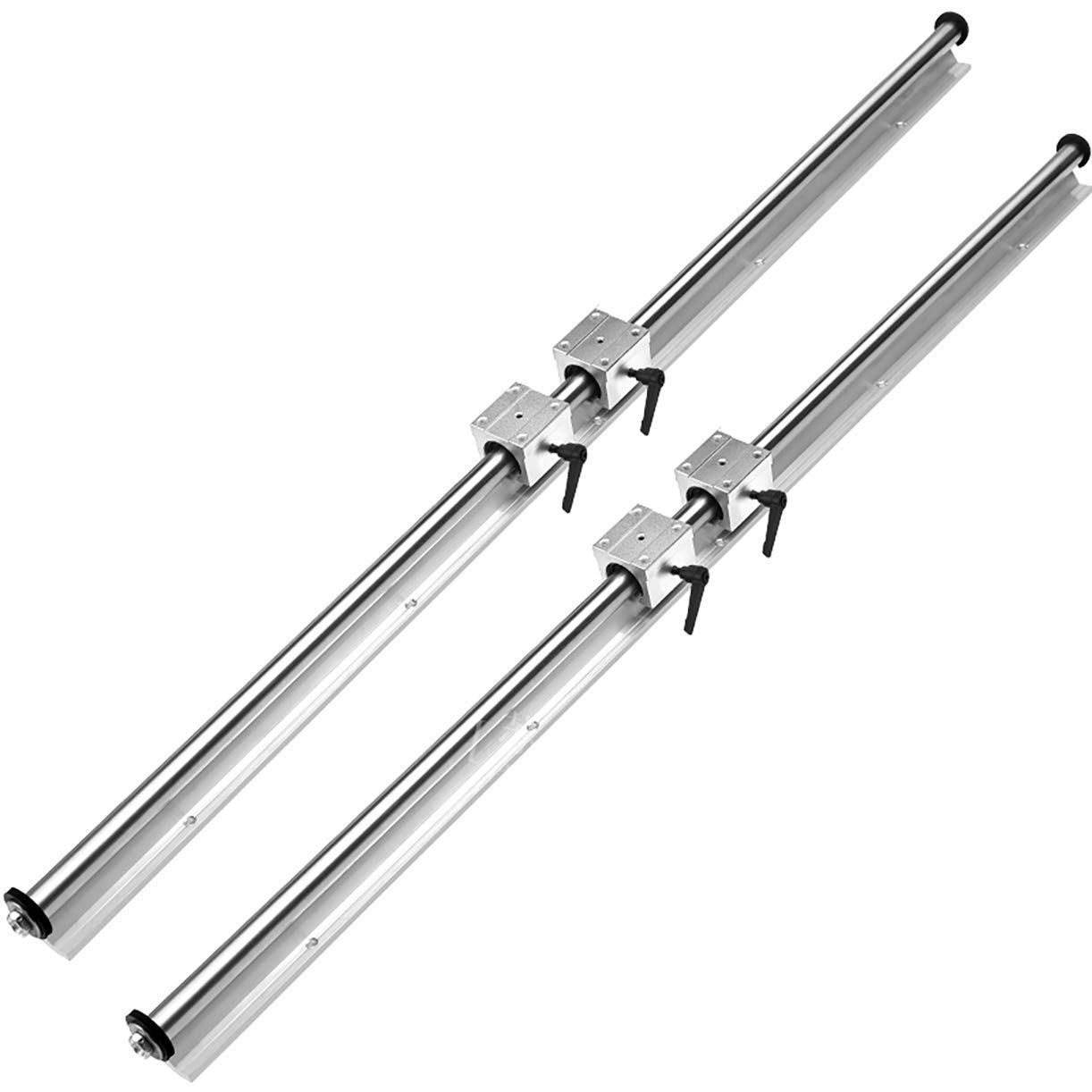

We provide customization, including the rail length, End stops which avoid the blocks sliding off the end of the rail, and the Handle which used to adjust the tightness of the slider block, you can see the real object of the retaining ring and handle in the 2nd image. You can let us know your need through Amazon Message

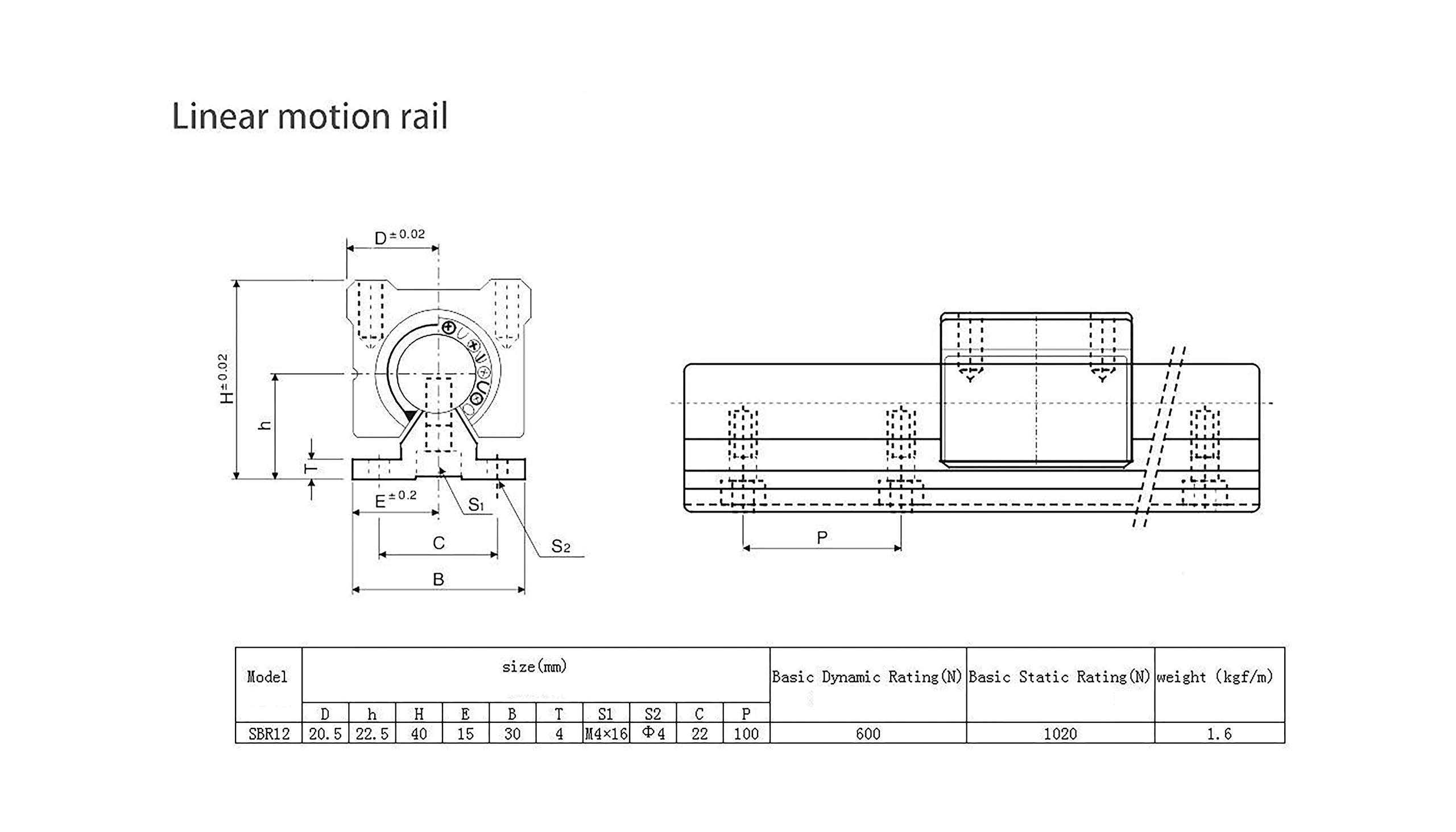

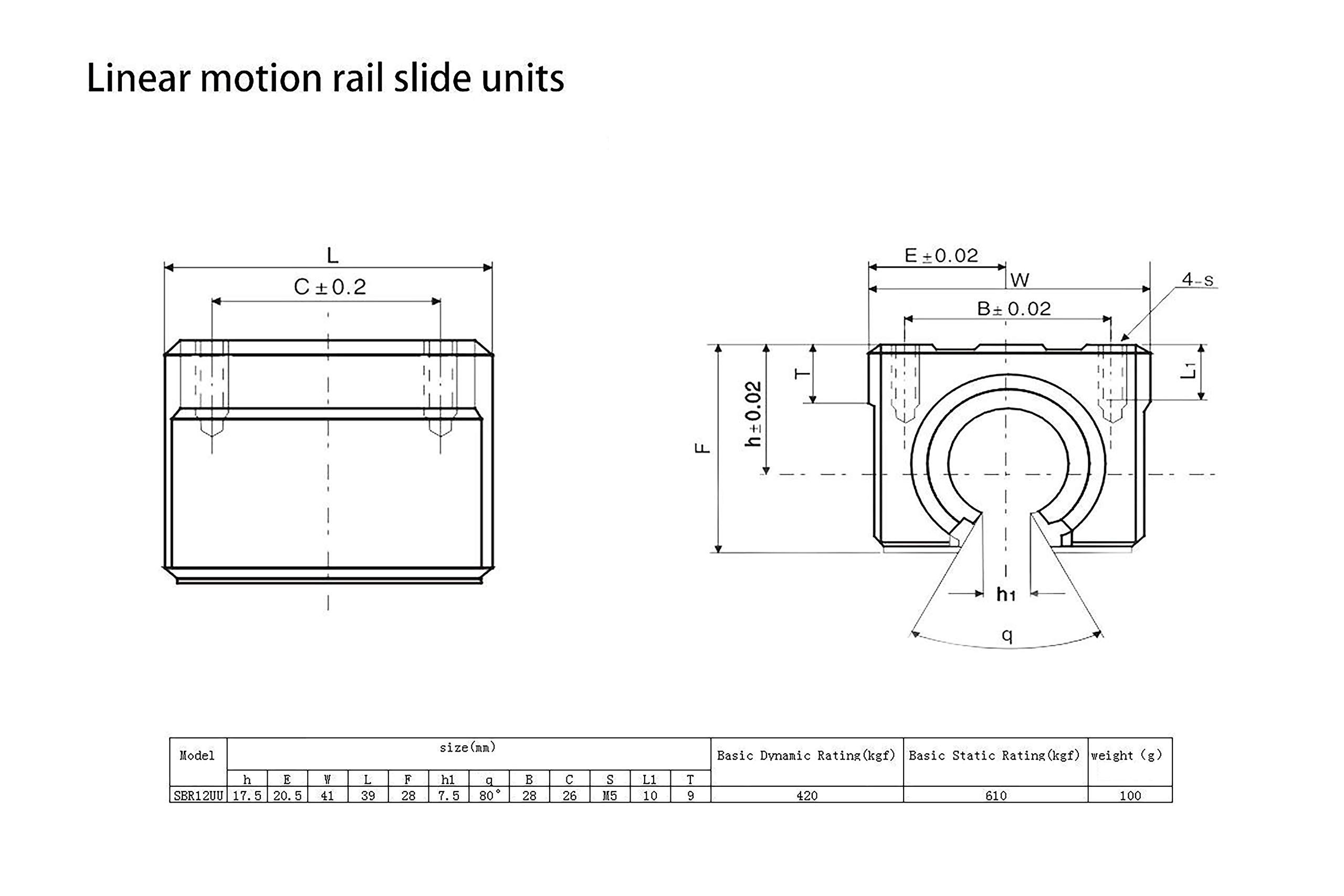

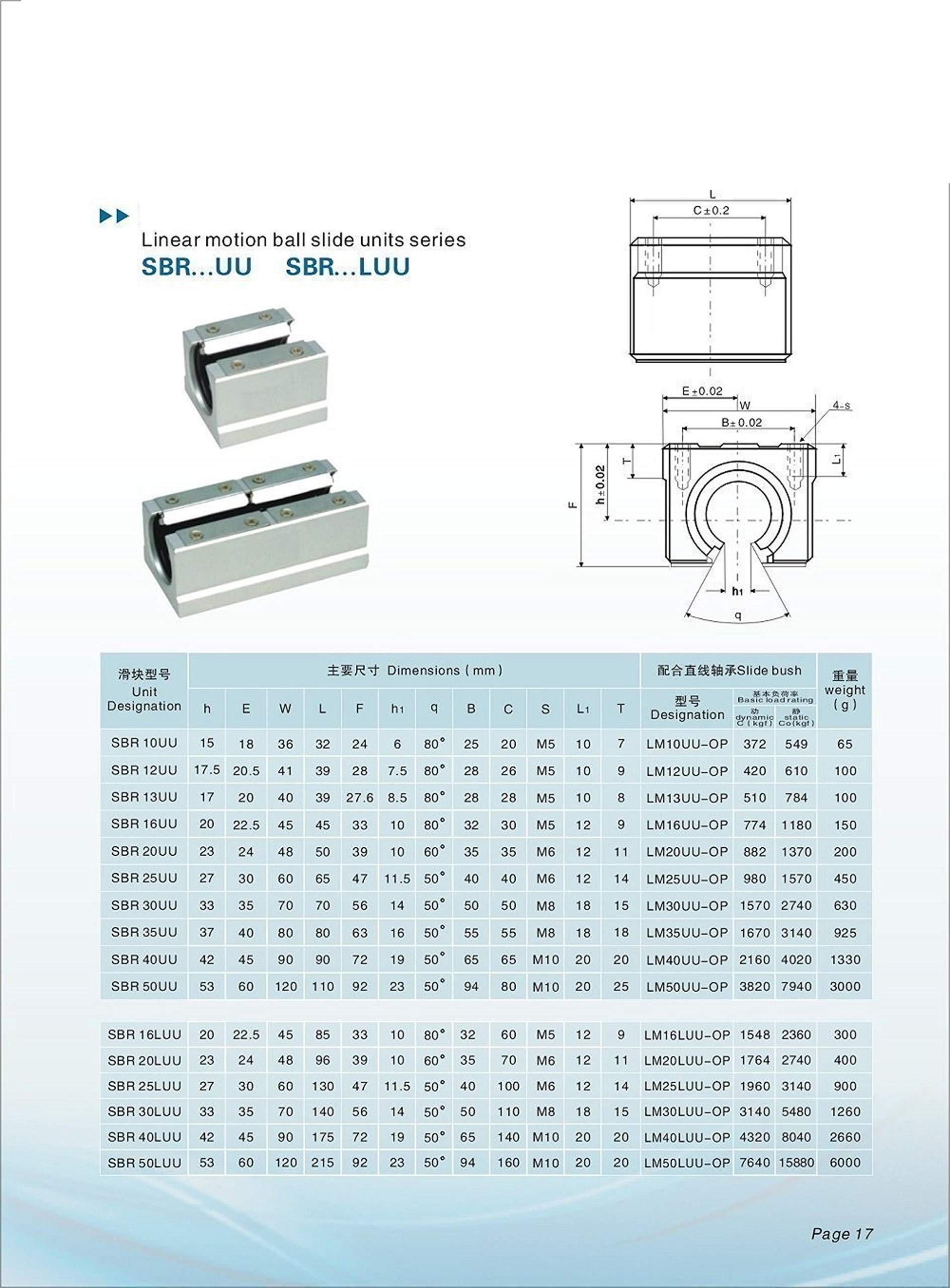

The maximum weight of single SBR12 UU slider block can carry is 94.4lbs, 4Pcs SBR12 UU slider blocks are 377.6lbs. You can get more technical data from the images

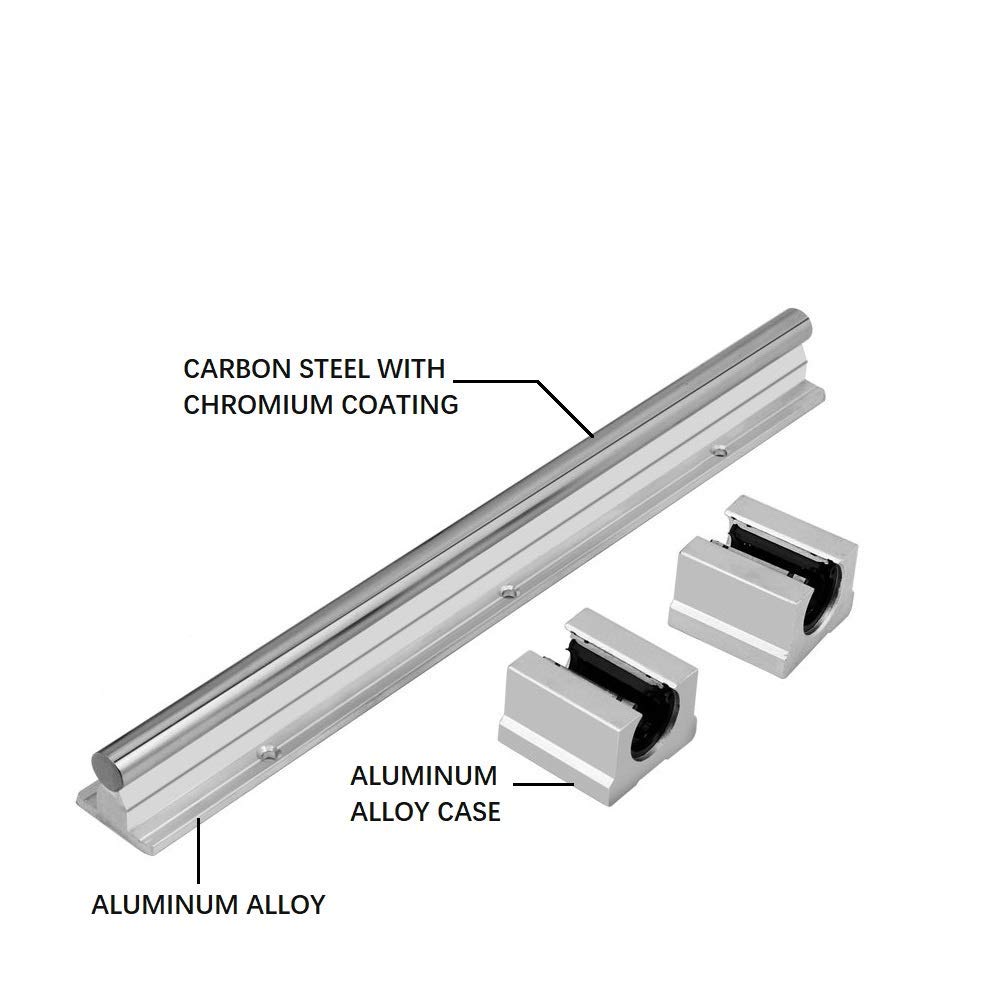

The material of shaft is the Carbon Steel with Chromium coating, quenching and anti-rust treatment; high hardness, more durable. Industrial-grade standard SBR block, with a high precision linear bearing inside. Make the sliding smooth, low friction, silent operation
WARRANTY Within 3 months receiving the linear rail, if there is any problem except for damage caused by man-made or improper operation, with the premise of choosing the proper product model and ensuring the working environment well ventilated and tidily, we will send new linear rail for free or give a total refund. What you need to do is to message us through Amazon
