SKU:18053245

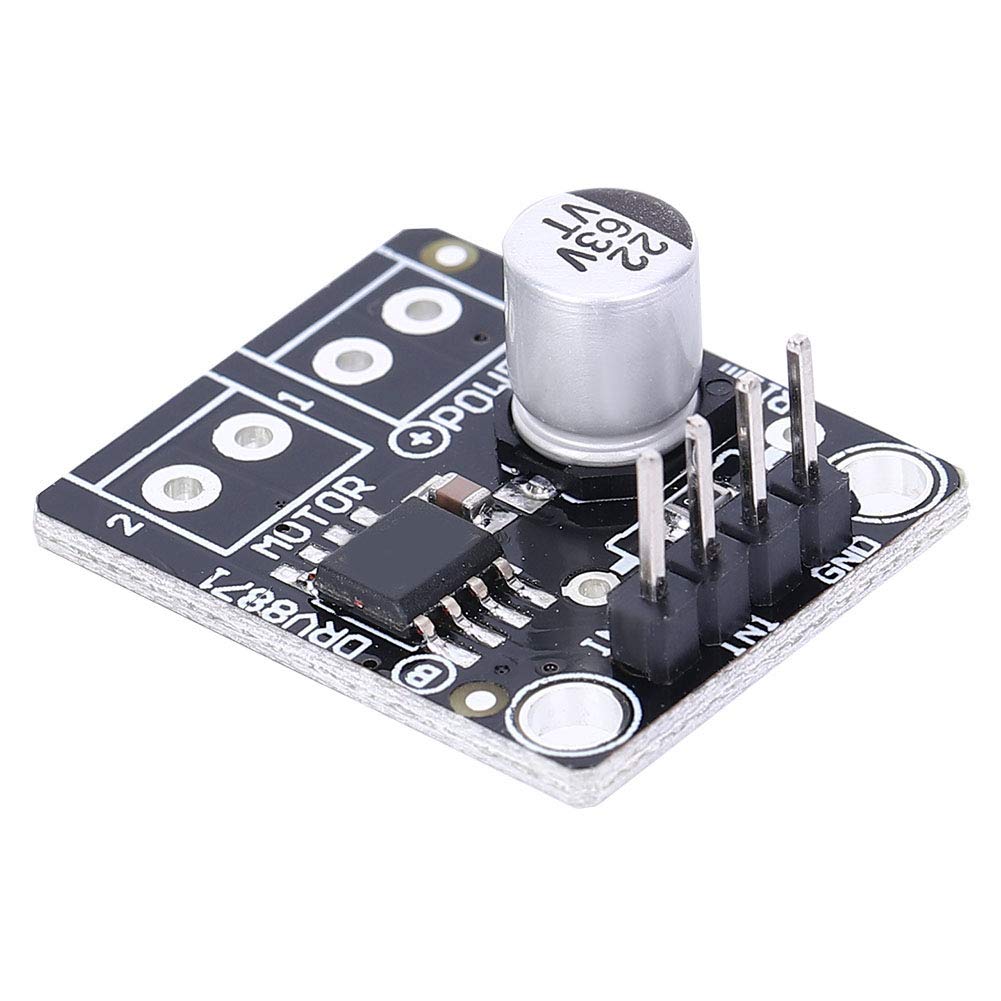

Feature:1. The DRV8871 device is a brushed DC motor driver for printer, appliance, industrial equipment and other small machines.2. The inputs can be pulse width modulated (PWM) to control motor , using a choice of current-decay modes.3. Two logic inputs control for Hbridge driver, which consists of four N-channel for MOSFET that can control motors bidirectionally with up to 3.6A peak current.4. VM undervoltage lockout (UVLO), overcurrent protection (OCP), thermal shutdown (T ) and automatic fault recovery.5. 6.5V to 45V wide voltage and integrated protection function, setting both inputs low enters a low-power sleep mode.Specification:Condition: 100% Brand NewItem Type: Driver ModuleWide Voltage: DC6.5-45VPeak Current: 3.6AControl Interface: PWMIntegrated Protection Function: VM undervoltage lockout (UVLO), overcurrent protection (OCP), thermal shutdown (T ), automatic fault recoveryPackage List:1 x Driver Module1 x Pin Header
The inputs can be pulse width modulated (PWM) to control motor , using a choice of current-decay modes.
Two logic inputs control for Hbridge driver, which consists of four N-channel for MOSFET that can control motors bidirectionally with up to 3.6A peak current.
Two logic inputs control for Hbridge driver, which consists of four N-channel for MOSFET that can control motors bidirectionally with up to 3.6A peak current.
6.5V to 45V wide voltage and integrated protection function, setting both inputs low enters a low-power sleep mode.
The DRV8871 device is a brushed DC motor driver for printer, appliance, industrial equipment and other small machines.
VM undervoltage lockout (UVLO), overcurrent protection (OCP), thermal shutdown (T ) and automatic fault recovery.
