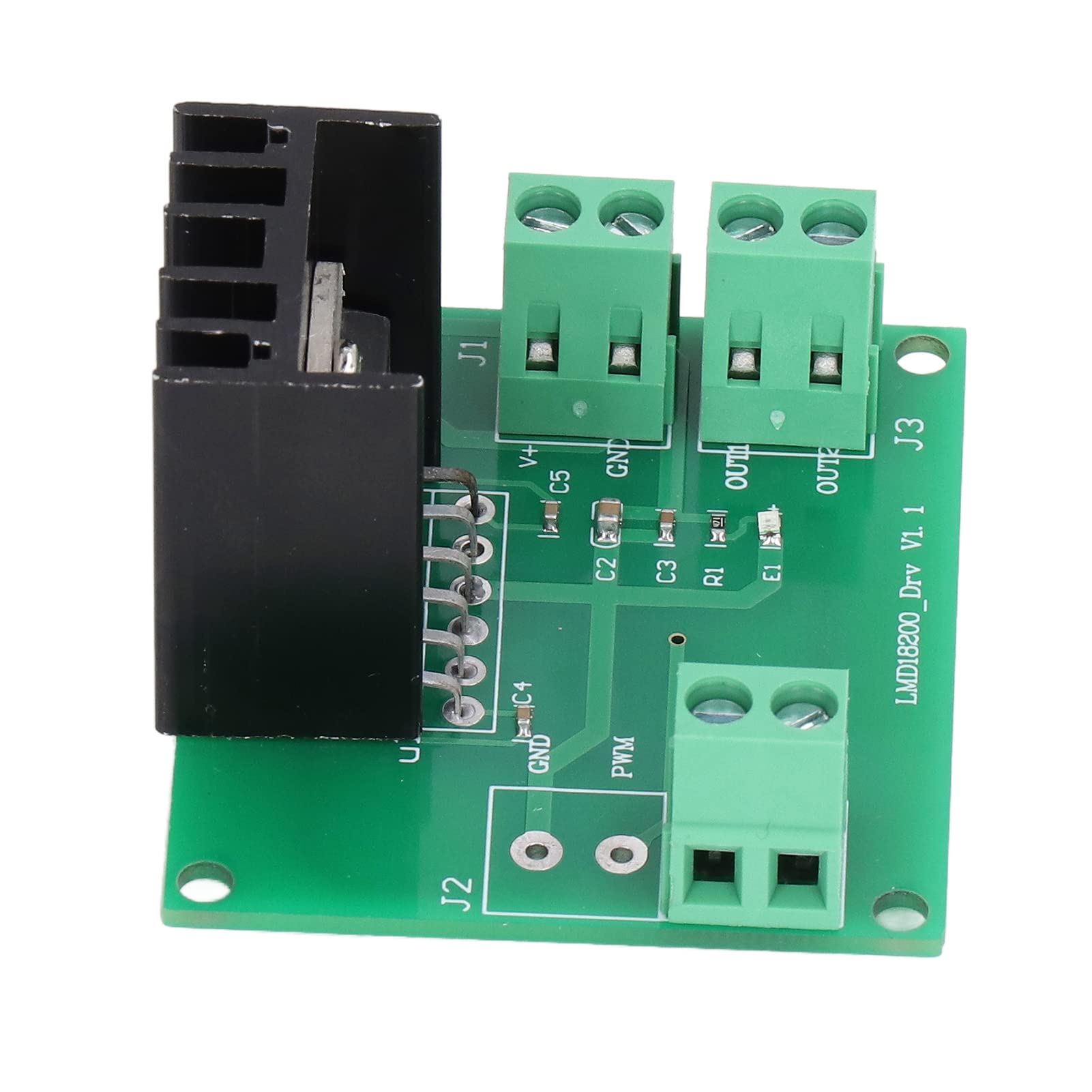

LMD18200T PWM DC Motor Drive Module - Adjustable Speed Motor Regulator Board with Copper Clad Laminate for Robotics, 3D Printers & DIY Projects | High Stability Motor Controller for CNC, Automation & STEM Education

Product Description

Feature:1. FOR DC MOTOR: Dedicated drive components for DC motors, integrated CMOS control circuit and DMOS power supply device on the same chip.2. MAIN PURPOSE: Forms a complete motion control system with main processor, motor and incremental encoder, with good practicability.3. PWM REGULATION: This motor drive module adopts PWM speed regulation and is widely used in printers and robots with power indicator lights, etc.4. MULTIPLE FUNCTION: Can control the DC motor independently and realize turning and reversing, with anti interference function of continuous protection.5. VOLTAGE RANGE: The control signal voltage range is DC 4.5‑5.5V, the drive motor voltage range is 10‑30V, and the application range is wide.Specification:Item Type: DC Motor Drive ModuleProduct Material: Copper Clad LaminateMain Chip: LMD18200TWorking Voltage: Control Signal: DC 4.5-5.5V; Drive Motor Voltage: 10-30VMaximum Output Current: 3A (instantaneous current is 6A)Maximum Output Power: 75W Package List:1 x Motor Drive ModuleNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
