SKU:10132202

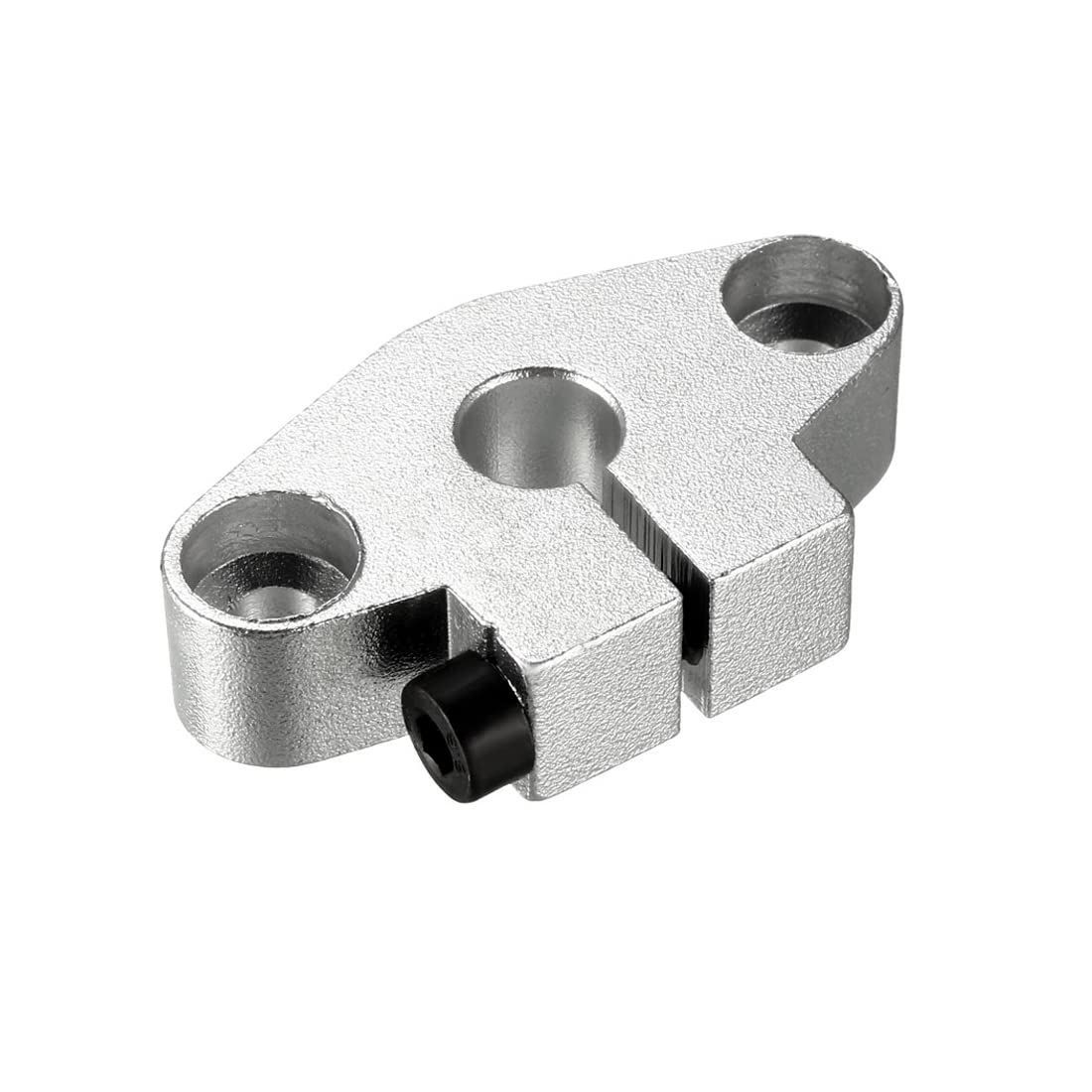

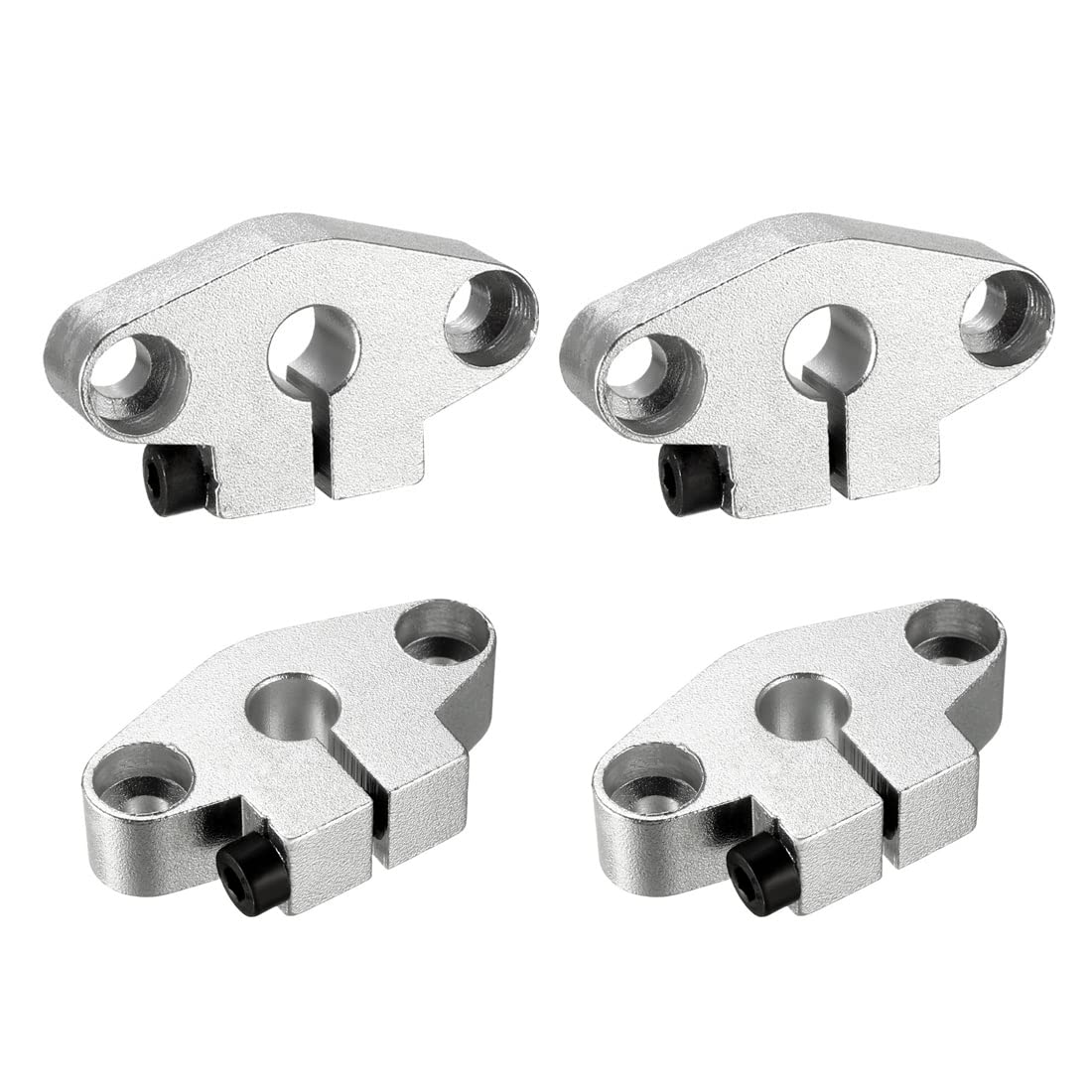

Description: Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is not a concern.Shaft support blocks enable clamping of shafts, removing the need for bolts to maintain shaft position.Shaft guides are an economic and widely used linear guide system for many applications. Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry.Specification:Model: SHF8Material: Aluminum AlloyFit Shaft Diameter: 8mm/0.31inchMounting Hole Diameter: 5.5mm/0.22inchMounting Hole Distance: 32mm/1.26inchPackage Content:4pcs x linear rod rail shaft support

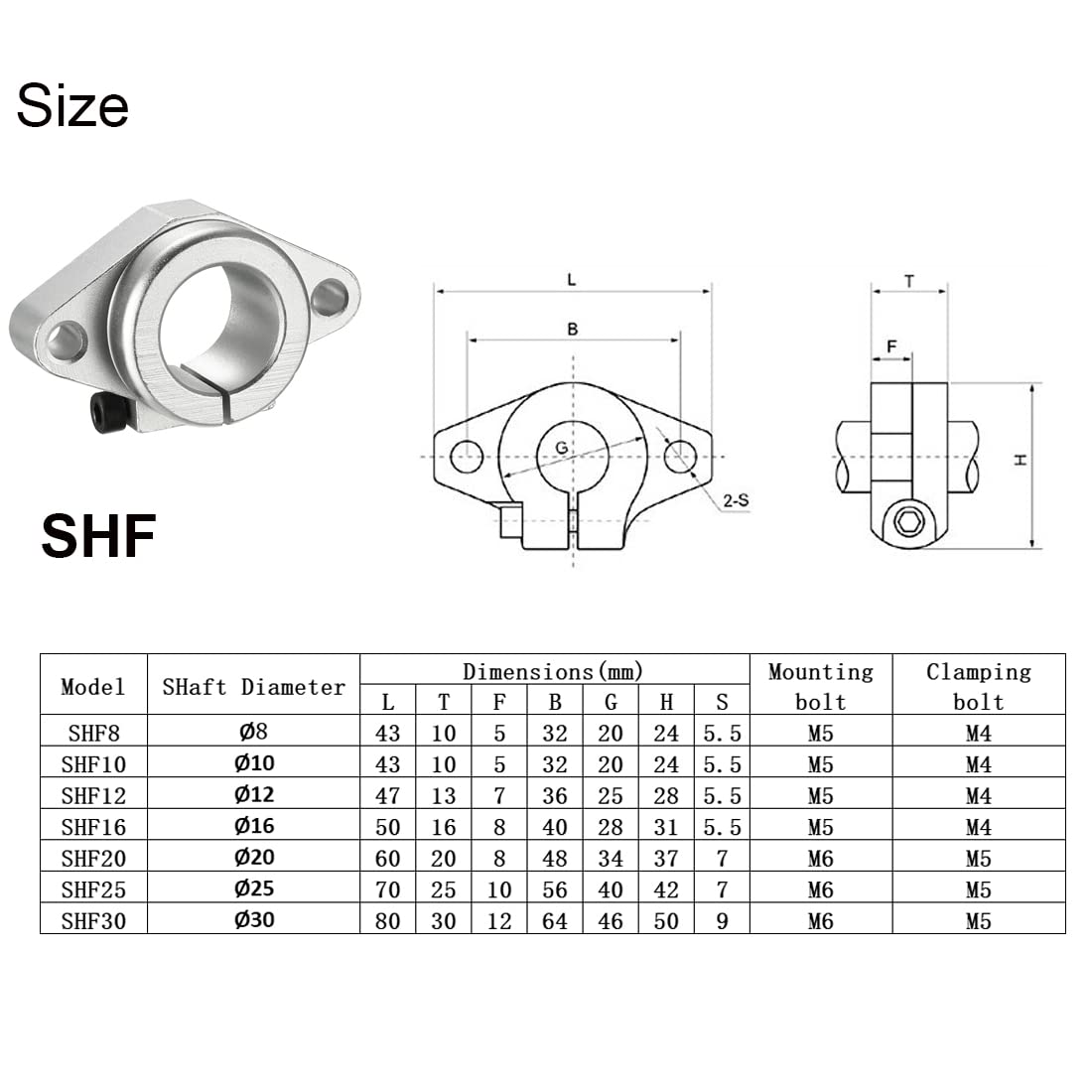

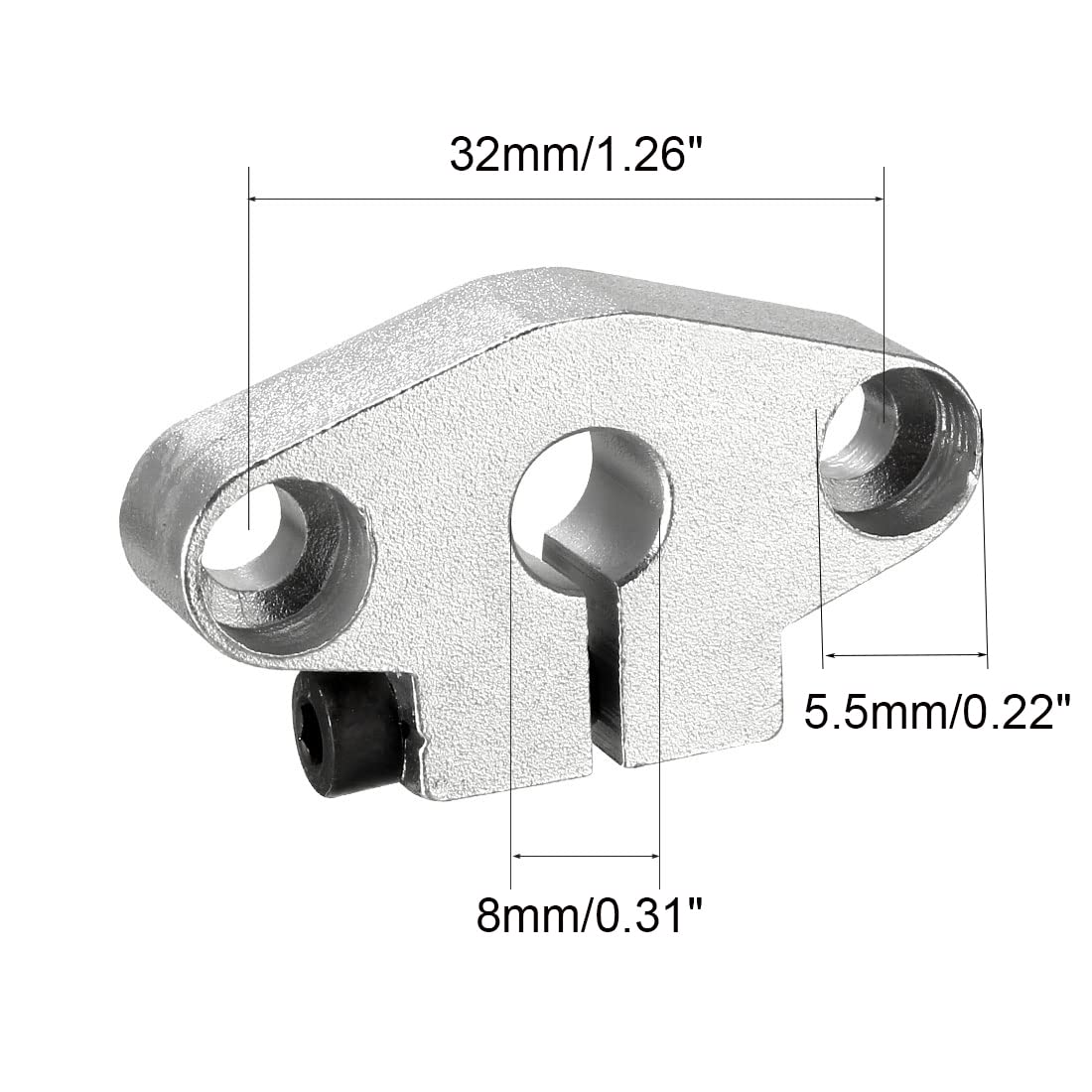

Model SHF8; Shaft Diameter 8mm/0.31inch; Mount Hole Dia. 5.5mm/0.22inch
Made of Aluminum material, corrosion resistance and long life.
High friction resistance can get high precision rotating in the smooth movement.
Lightweight shaft supports are easy to install and quick to align
Application Widely used for digital 3D coordinate measuring equipment such as precision equipment or special machinery industry
Worked great, nice quality, hold the slide bars for my router table well
